Understanding the Role of EPC and UHF Gen2 Air Interface Protocol in UHF RFID Labels

Within the realm of UHF RFID know-how, two essential parts play a vital function in enabling environment friendly and correct monitoring of things: the Digital Product Code (EPC) and the UHF Gen2 Air Interface Protocol. These key parts have revolutionized stock administration, provide chain logistics, and quite a few different functions the place item-level monitoring is paramount. This text goals to offer a transparent understanding of the function of EPC and the UHF Gen2 Air Interface Protocol in UHF RFID labels.

What’s EPC?

EPC, or Digital Product Code, is a universally distinctive identifier that’s saved on an RFID tag or label. Developed by EPCglobal, EPC gives an environment friendly and standardized approach to establish merchandise inside the provide chain. It usually contains a header, a singular EPC identifier, and a filter worth. The distinctiveness of the EPC permits each particular person merchandise to be tracked and traced all through its lifecycle.

The Construction of EPC

An EPC is usually divided into a number of parts, every serving a selected function:

• Header: This half signifies the size and sort of EPC.
• EPC Supervisor: This portion is assigned by GS1 to the corporate that may handle the EPC.
• Object Class: This defines the kind of product or SKU.
• Serial Quantity: That is the distinctive identifier of the person merchandise.

EPC and UHF RFID Labels

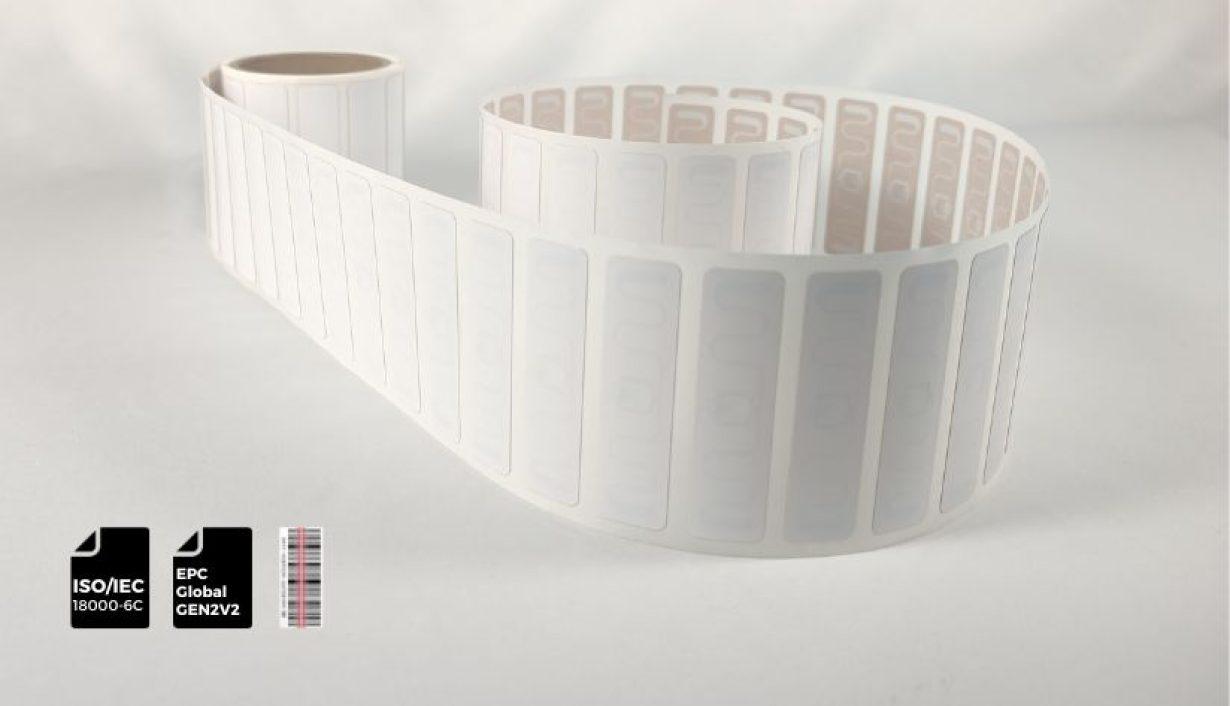

UHF RFID labels are designed to hold EPC knowledge. This distinctive identifier, when encoded onto the RFID label, transforms the label into greater than only a monitoring software. It turns into a digital passport of kinds for the merchandise, carrying important details about it wherever it goes.

When an RFID reader interrogates an RFID label, it receives the EPC code together with different info from the tag. This knowledge is then transmitted to a list administration or monitoring system for processing and evaluation. The EPC info is utilized to establish the precise merchandise and entry its related knowledge.

UHF Gen2 Air Interface Protocol

The UHF Gen2 Air Interface Protocol, developed by EPCglobal and ratified as ISO 18000-6C, is the communication commonplace for UHF RFID programs. It defines how the RFID reader and tag talk, together with how info is coded, modulated, and the anti-collision protocols used. This protocol ensures dependable and environment friendly communication between RFID readers and tags, which is important for efficient RFID programs.

The UHF Gen2 protocol is characterised by the tag modulating its info and backscattering to the reader solely after the reader sends a command. It employs Pulse Interval Encoding (PIE) for the reader to tag communication, Amplitude Shift Keying (ASK) for modulation, and a Q-algorithm for anti-collision.

The Significance of EPC and UHF Gen2 Protocol in UHF RFID Labels

The usage of EPC and the UHF Gen2 Protocol in UHF RFID labels gives a spread of advantages:

• Distinctive Identification: With EPC, each tagged merchandise may be uniquely recognized, enabling correct monitoring and tracing of particular person gadgets.
• International Normal: EPC and the UHF Gen2 Protocol are globally acknowledged requirements. Which means EPC-encoded RFID labels can be utilized in international provide chains with out compatibility points.
• Interoperability: EPC and the UHF Gen2 Protocol permit for seamless communication between completely different {hardware} and software program programs, facilitating easy integration and interoperability.
• Environment friendly Stock Administration: With EPC and the UHF Gen2 Protocol, stock administration turns into a breeze. Inventory counts, finding particular gadgets, and managing stock ranges are all made simpler and extra environment friendly.

In conclusion, the function of EPC and the UHF Gen2Air Interface Protocol in UHF RFID labels is prime to the success of RFID programs. They supply the distinctive identification wanted for item-level monitoring and guarantee seamless integration throughout completely different programs and provide chains. By understanding their roles and significance, companies can higher leverage the capabilities of UHF RFID know-how for improved effectivity and accuracy of their operations.
