The Technology Behind RFID Cards: How Do They Really Work

These days, RFID expertise is turning into an increasing number of widespread in our every day lives. Whether or not it’s entry playing cards, visitors playing cards, or fee playing cards, RFID playing cards are virtually in every single place in our every day lives. Though we use RFID playing cards every day, most of us don’t have an in-depth understanding of how these playing cards work. This weblog will clarify intimately the expertise behind RFID playing cards and the way they work.

The working ideas of RFID expertise

RFID is an identification expertise that makes use of radio waves for authentication and knowledge interplay. It’s primarily constructed from RFID playing cards or tags and readers. On this, the RFID card has a microchip and antenna embedded in it. As well as, RFID readers are used to obtain and transmit radio alerts.

When the RFID reader transmits a radio sign of a particular frequency, the antenna within the RFID tag receives this sign and prompts the inner chip. The chip transmits knowledge info to the RFID reader in accordance with preset directions. On this course of, the interplay between the information and knowledge is realized.

What are the forms of RFID playing cards

RFID card varieties might be categorized based mostly on traits similar to working frequency, sensible utility eventualities and the way in which energy is equipped. Widespread RFID card varieties embrace:

Low frequency RFID card: The working frequency of this card is often round 125 kHz and its studying vary is often round a couple of centimeters. Its most important functions are in entry management and animal identification.

Excessive frequency RFID card: HF RFID playing cards function at a frequency of 13.56 MHz and have a learn vary of lower than one meter. Widespread functions embrace public transport playing cards and entry playing cards.

Extremely-high frequency RFID card: The working frequency of UHF RFID playing cards often stays between 860-960MHz. Its studying vary is best than the earlier two, the space can attain a number of meters or much more than ten meters. This card is extensively utilized in logistics and warehousing industries.

Energetic RFID card: Firstly, an energetic RFID card must be powered by an inbuilt battery to perform. Secondly, it has a protracted studying distance. Nevertheless, its manufacturing price is comparatively excessive and its cost-effectiveness is comparatively low. Apart from some eventualities that require long-distance identification, this sort of card is usually not used.

Passive RFID card: This card doesn’t require an inbuilt battery to energy it however is activated for operation by the electromagnetic induction emitted by the reader. It’s comparatively low price and has a great lifespan, making it supreme for these searching for worth for cash.

What’s the construction of an RFID card

Though an RFID card might look unusual, its inside construction accommodates many key applied sciences. The next are the principle parts of an RFID card:

Chip: Chip is the core element of an RFID card, and its perform is to retailer and course of knowledge info. Amongst different issues, the chip has a novel identification code and a read-write cupboard space. This cupboard space can be utilized to carry the person’s knowledge info.

Antenna: One other core element within the card is the antenna, which can be utilized to obtain and ship radio alerts. As well as, the studying efficiency and vary of RFID playing cards are inextricably linked to the fabric and design of the antenna.

Substrate: In RFID playing cards, the substrate is a vital materials that serves as a assist for the chip and antenna. The substrate of the cardboard is often fabricated from plastic supplies similar to PVC and PET. For some particular utilization eventualities, metals or supplies could also be used to boost sturdiness.

Capsule layer: Along with the above components, RFID playing cards have a extra necessary a part of their packaging layer. The encapsulation layer is used to guard the chip and antenna inside the cardboard from exterior environmental elements. As well as, it additionally supplies anti-cloning options.

How does the RFID card work

Once we use RFID playing cards, the same old process is as follows:

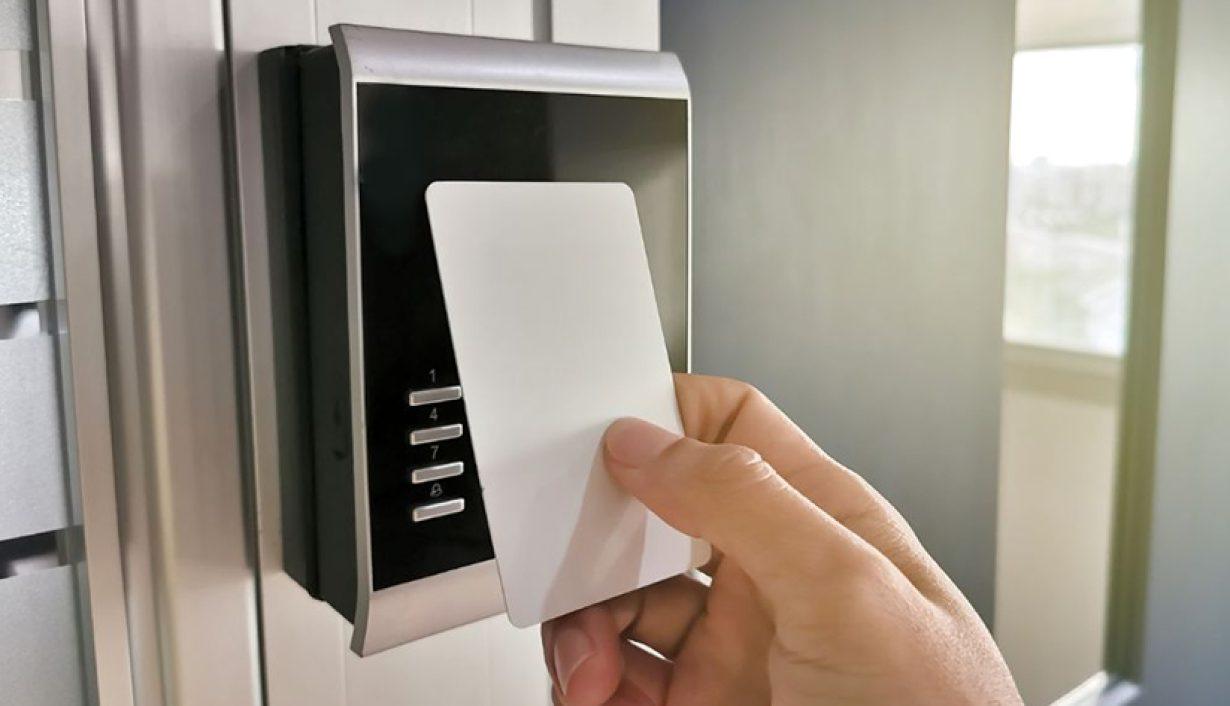

Card induction: When the person brings the RFID card near the studying vary of the reader, the reader emits a radio sign which creates an electromagnetic subject.

Electromagnetic induction: The antenna of a passive RFID card receives a radio sign in an electromagnetic subject and generates a weak present. This present is what powers the chip and prompts its operation.

Information alternate: The chip within the RFID card, when activated, transmits the saved knowledge info again to the reader by means of the antenna. After receiving the information, the reader will decode the information and carry out the corresponding operations. For instance, to determine the authentication of identification or licensed entry.

Suggestions response: After the reader has completed studying the information, it often provides suggestions to the RFID card holder or the system. This suggestions can take the type of a inexperienced gentle approaching or a door lock opening, and so forth., thus making the entire operation a hit.

Conclusion

The expertise behind RFID playing cards is greater than easy radio wave transmission; it represents one of many core applied sciences for knowledge assortment, transmission and processing in an information-based society. Understanding how these applied sciences work not solely helps us to raised apply RFID playing cards but additionally supplies inspiration and route for attainable new utility eventualities sooner or later. On this extremely interconnected period, the function of RFID playing cards will turn into an increasing number of necessary.

After studying this weblog, in case you are interested by RFID card, you may go to our official web site (www.rfidltd.com) to browse extra details about RFID card. If you wish to get options for NFC playing cards, be happy to contact our gross sales consultants, who will offer you the appropriate options and the skilled buy ideas in accordance with your wants.

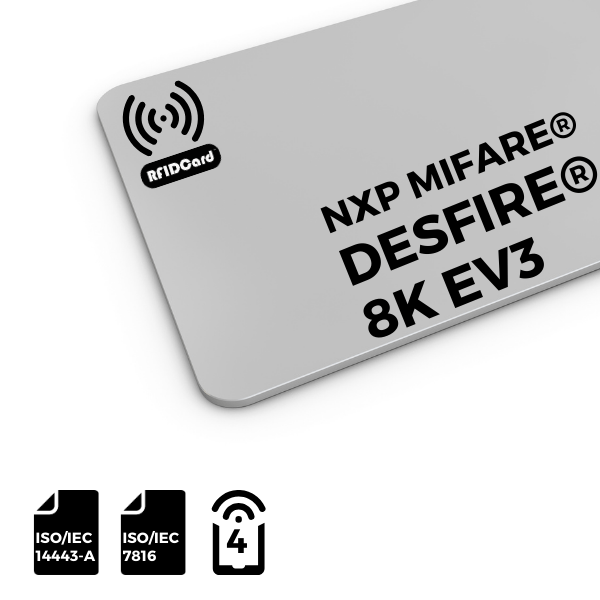

RFID Card NXP MIFARE®DESFire®8K EV3
