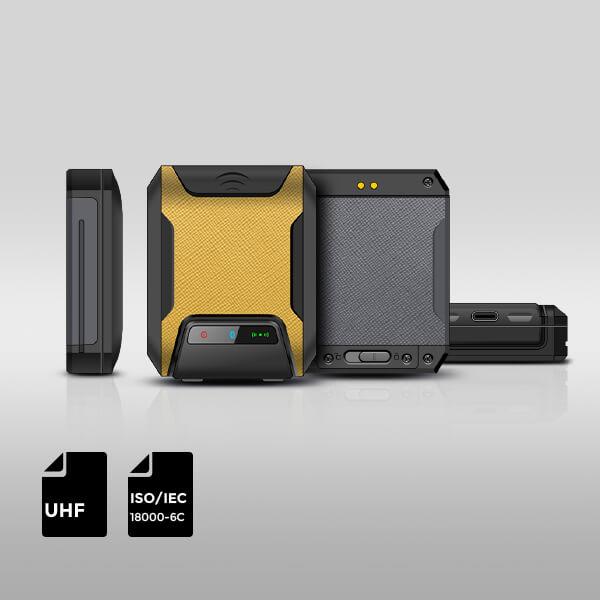

Wearable Bluetooth UHF RFID Reader:
- Built-in UHF Module: Equipped with a CM-3N module based on IMP E310.
- Data Collection and Transmission: Connects via Bluetooth to Android/iOS devices.
- Adaptable: Suitable for logistics, retail, warehouse management, power patrol inspection, asset management, e-commerce picking, ticket checking, and more.
- Hands-Free Operation: Improves work efficiency by freeing users’ hands.
Features:
- Frequency Band: UHF 860-960 MHz.
- Engine: CM-3N module based on IMP E310.
- International Standard: ISO 18000-6C, EPC Class 1 Gen 2.
- Durability: 1.2 m drop on concrete.
- Sealing: IP65.
- Bluetooth: Bluetooth Low Energy (BLE) 5.0.
Specifications:
Physical Specifications:
- Dimensions: 50 x 62 x 19 mm | 1.97 x 2.44 x 0.75 in.
- Weight: 64 g / 2.26 oz.
- Color: Yellow.
- Port: USB Type-C.
- Battery: 1200 mAh (removable).
- Charging Duration: 1 hour.
- Charging Current: 5V / 1.5A.
- LED Indicator:
- Red: Charging.
- Blue: Fully charged.
- Green: Battery above 20%.
- Bluetooth: Paired when ON, unpaired when OFF.
Environmental Specifications:
- Operating Limits: -20°C to +50°C, 5% to 95% RH.
- Storage Limits: -40°C to +70°C, 5% to 95% RH.
- Drop Resistance: 1.2 m drop on concrete.
- Sealing: IP65.
RF Specifications:
- Engine: CM-3N module based on IMP E310.
- Operating Frequency: 865-868 MHz | 902-928 MHz | 920-925 MHz.
- Protocol: EPC C1GEN2, ISO18000-6C.
- Antenna: Linear Polarized Antenna (-2.2 dBi).
- Power: 0.5W (27 dBm, adjustable from +19 dBm to +27 dBm).
- Read/Write Range: Up to 80 cm (depends on tags and environment).
Development Environment:
- Software Development Kit: Android | iOS SDK supported.
- Security: RFID Encrypted Module (reserve).
- Communication:
- USB Type-C: For data transfer.
- Bluetooth: BLE 5.0.
Performance & Accessories:
- MCU: Cortex-M3 | 72 MHz.
- Accessories: Glove, charging cradle for battery.
Why Choose Us:
- Quality & Value: Over a decade as a leading RFID hardware manufacturer, delivering high-quality products at competitive prices.
- Expertise & Innovation: Our expert team provides advanced and customized RFID solutions.
RFID Readers to Match:
- Frequency Band: UHF 860-960 MHz.
- Engine: CM-3N module based on IMP E310.
- International Standard: ISO 18000-6C, EPC Class 1 Gen 2.
- Durability: 1.2 m drop on concrete.
- Sealing: IP65.
- Bluetooth: BLE 5.0.
Available Readers:
- Desktop HF Reader.
- Fixed HF Reader.
- Desktop UHF Reader.
- Handheld UHF Reader.
- Bluetooth UHF Reader.
- Fixed UHF Reader.
