Key Features and Specifications of Our Washable Smart Textile RFID Tag
Product Overview
- Enhanced Inventory Efficiency: Our washable Smart Textile RFID Tag is specifically designed to streamline inventory management and self-checkout processes in the fashion and apparel industries.
- Robust Design: Measuring 70×40mm, the tag features the advanced U9 chip, compliant with ISO 18000-6C, ensuring superior tracking and durability.
- Ease of Use: The tag includes a pre-printed generic RFID logo for easy identification and dotted lines for precise sewing, simplifying integration into garments.
Features
- Frequency Band: UHF 860-960 MHz
- Chip Type: U9
- International Standards:
- ISO/IEC 18000-6C
- EPC Global Gen2v2.1
- Memory Capacity:
- EPC Memory: 96 bits (read & write)
- TID Memory: 96 bits (read-only)
- Environmental Compliance: WEEE Compliant
Physical Specifications
- Material: Nylon
- Label Size: 70×40mm
- Antenna Size: 50×30mm
Technical Parameters
- Operating Frequency: 860-960 MHz
- Communication Protocol: ISO/IEC 18000-6C, EPC Global Gen2v2.1
- Antenna Etching Mode: Aluminum etching
Operating Environment
- Operating Temperature: -40°C to 70°C
- Operating Humidity: 20% to 90% RH
- Label Attach Environment: 18°C to 28°C, 40% to 60% RH
Handling Precautions
- Do not bend the tag.
- Keep away from water and collision.
- Do not use tags with black-dot marks.
Chip Characteristics
- Chip Manufacturer: Contact Customer Service
- Chip Type: U9
- Read Sensitivity: -24 dBm
- Write Sensitivity: -22 dBm
- Encoding Speed: 32 bits in 0.96 ms
- Kill Password: 32 bits (read & write)
- Write Endurance: 100,000 write cycles
- Data Retention Time: 20 years
Packaging

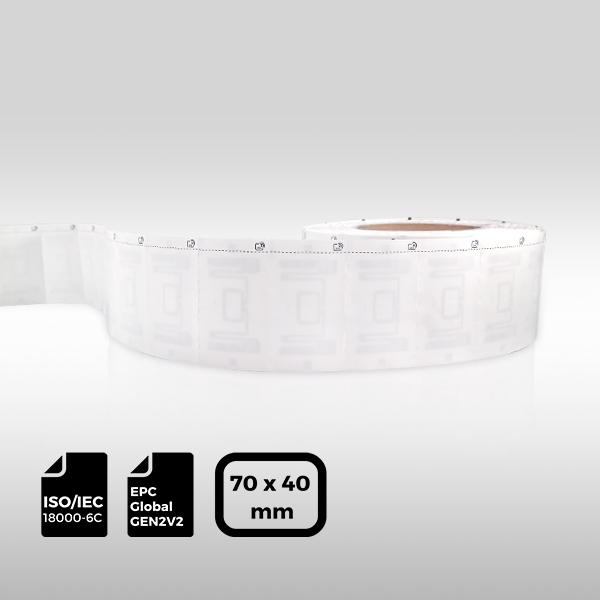

- Packing Format: In roll, vacuum-sealed in ESD bag
- Roll OD: Max. 203.2 mm
- Core ID: 3 inches (76.20±0.50 mm)
- Packing Quantity: 1000 pieces per roll, single roll weight: 0.8325 kg
Our washable Smart Textile RFID Tag is designed to meet the demanding requirements of the fashion and apparel industries, providing reliable tracking and inventory management solutions.
