Product Overview

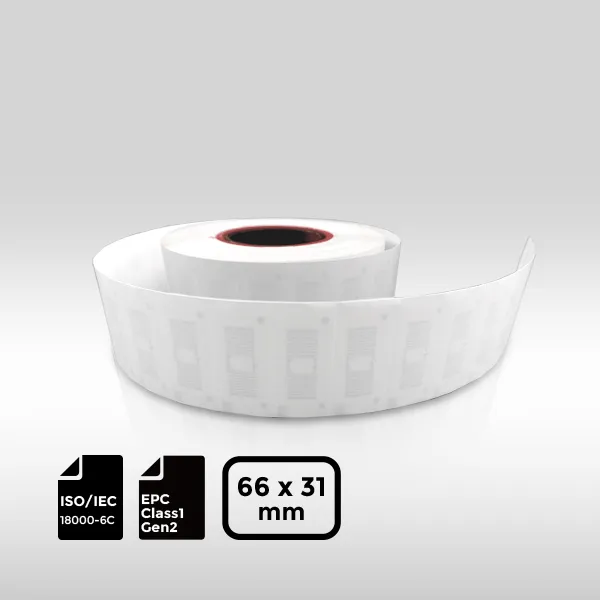

- Boost Inventory Efficiency: Our washable Smart Textile RFID Tag is specifically engineered for the fashion and apparel sectors.
- Compact Design: Size of 66×31 mm, making it ideal for seamless integration into garments.
- Advanced Technology: Powered by the U9 chip, adhering to ISO 18000-6C standards.
- Exceptional Performance: Offers superior tracking performance and durability.
- Ease of Integration: Features dotted lines for precise sewing, simplifying inventory control and enhancing the self-checkout experience.
Features
- Frequency Band: UHF 860-960 MHz
- Chip Type: U9
- International Standard: ISO/IEC 18000-6C, EPC Class1 Gen2
Physical Specifications
- Material: Nylon
- Tag Size: 66×31 mm
- Antenna Size: 40×15 mm
Technical Parameters
- Operating Frequency: 860-960 MHz
- Communication Protocol: ISO/IEC 18000-6C, EPC Global Gen2v2.1
- Operating Mode: Passive
Chip Characteristics
- Chip Manufacturer: Contact Customer Service
- Chip Type: U9
- Data Retention: 20 years
- EPC Memory: 96 bits
- TID Memory: 96 bits
- Write Endurance: 100,000 cycles
- Read Sensitivity: -24 dBm
- Write Sensitivity: -22 dBm
- Kill Password: 32-bit
- Encoding Speed: 32 bits in 0.96 ms
Operating and Storage Environment
- Label Attach Environment: 10°C~40°C, 20%~80% RH
- After Label Attached: -20°C~50°C, 20%~80% RH
- Storage Environment: Temperature 18°C~28°C, Humidity 40%~60% RH
Packaging
- Packing Format: Packed in roll, vacuum-sealed in ESD bag.
- Roll OD: Max. 8.27 inches (210 mm)
- Core ID: 3 inches (76.2 mm)
- Packing Quantity: 2000 pcs/roll (30.972 kg/roll)
