Features
- Frequency Band: UHF 860-960 MHz
- Chip Type: Alien HEC
- International Standard: ISO/IEC 18000-6C, EPC Global Gen 2v2
- EPC Memory: 96 bits
- User Memory: 128 bits
- Certificate: WEEE compliant
Specifications
Product Datasheet
- Alien HEC Datasheet
Physical Specifications
- Material: PET
- Size: 74×24 mm
- Antenna Size: 70×17 mm
Technical Parameters
- Operating Frequency: 860-960 MHz
- Communication Protocol: ISO/IEC 18000-6C, EPC Global Gen 2v2
- Read Range: Up to 13 meters
- ESD Voltage Immunity: 2000V
- Operating Mode: Passive
Additional Information
Operating Limits
- Operating Environment: -40°C to 70°C, 20% to 90% RH
- Storage Environment: 18°C to 28°C, 40% to 60% RH
Handling Precautions
- Do not bend the tag.
- Keep away from water and collision.
- Do not use inlays with black-dot marks.
Chip Characteristics
- Chip Manufacturer: Alien H
- Chip Type: Alien HEC
- Data Retention: 50 years
- EPC Memory: 96 bits
- User Memory: 128 bits
- TID Memory: 48 bits
- Access & Kill Password: 32 bits
- Write Endurance: 200,000 cycles
- Read Sensitivity: -22.5 dBm
- Write Sensitivity: -19 dBm
Packaging

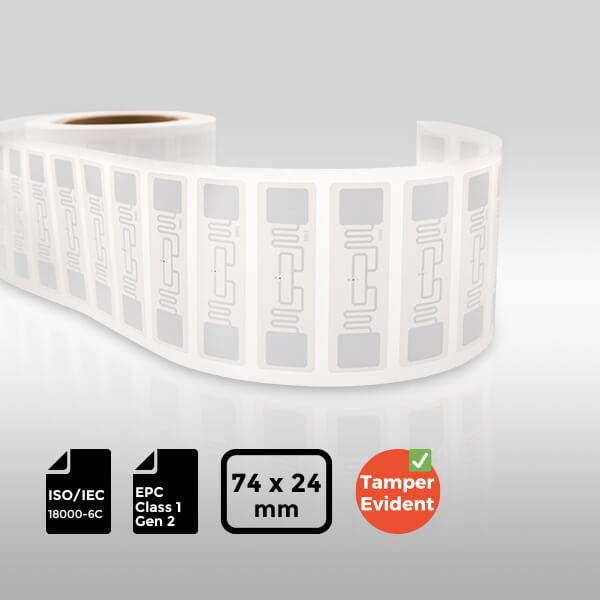

- Packing Format: Packed in roll, vacuum-sealed in ESD bag.
- Roll OD: Max. 185 mm
- Core ID: 3 inches (76.2 ± 0.50 mm)
- Packing Quantity: 2500 pcs/roll, 4 rolls per carton
