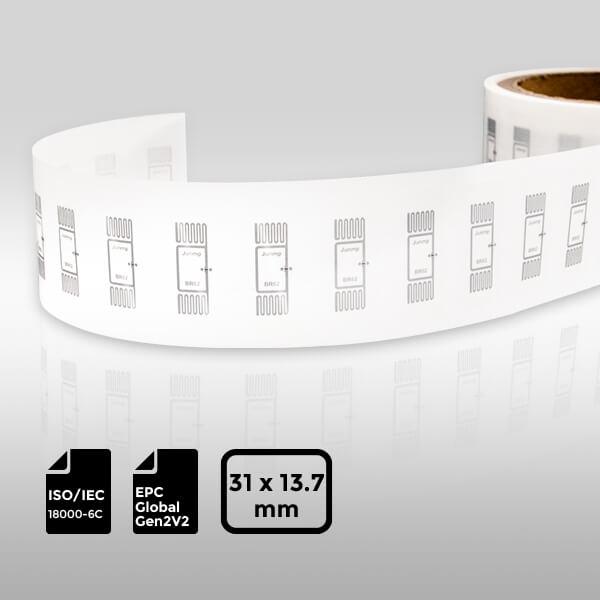

Features of the UHF RFID Wet Inlay with R6-P Chip
- Frequency Band: UHF 860-960 MHz
- Chip Type: R6-P
- International Standard: ISO/IEC 18000-6C, EPC Global Gen2v2
- EPC Memory: 128/96 bits
- User Memory: 32/64 bits
- Certificate: WEEE compliant
Specifications
Product Datasheet
- R6-P Datasheet
Physical Specifications
- Material: PET
- Label Size: 31×13.7 mm
- Inlay Size: 22×7.5 mm
Technical Parameters
- Operating Frequency: 860-960 MHz
- Communication Protocol: ISO/IEC 18000-6C, EPC Global Gen2v2
- Antenna Etching Mode: Aluminum etching (9µm)
- Operating Mode: Passive
- IC ESD Voltage Immunity: Max. 2000V
Chip Characteristics
- Chip Manufacturer: Contact Customer Service
- Chip Type: R6-P
- TID Memory: 96 bits
- EPC Memory: 128/96 bits
- User Memory: 32/64 bits
- AutoTune™ Automatic RF Tuning: Standard
- Integra™ Memory Diagnostics: Standard
- Enduro™ Robust Bonding Construction: Copper plating
- Tag Data Protection Features: Access/Kill Short-range mode
- Read Sensitivity: -22 dBm
- Write Sensitivity: -17 dBm
- FastID™ High-speed Reading: Yes
- TagFocus™ Read Redundancy Prevention: Yes
- Write Endurance: 100,000 write cycles
- Data Retention: 50 years
Additional Information
Operating Environment
- Operating Limits: -40°C to 70°C, 20% to 90% RH
- Storage Limits: 18°C to 28°C, 40% to 60% RH
Handling Precautions
- Do not bend the inlay.
- Keep away from water and collision.
- Do not use inlays with a black ink dot (indicating defective products).
Packaging
- Packing Format: In roll, vacuum-sealed in ESD bag
- Roll OD: Max. 195 mm
- Core ID: 3 inches (76.2 mm ± 0.50 mm)
- Packing Quantity: 1000 pieces per roll, single roll weight: 0.2 kg
