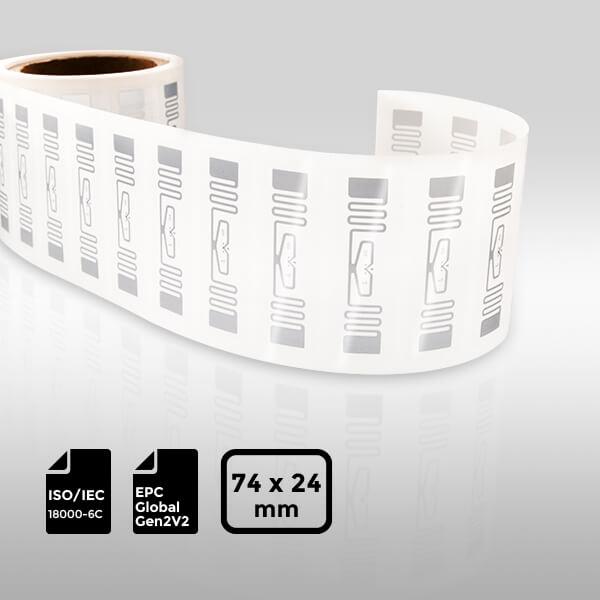

Features of the 74×24 mm UHF RFID Wet Inlay with 4E Chip
- Frequency Band: UHF 860-960 MHz
- Chip Type: 4E
- International Standard: ISO/IEC 18000-6C, EPC Global Gen2v2
- EPC Memory: 496 bits (Read & Write)
- User Memory: 128 bits (Read & Write)
- Certificate: WEEE compliant
Specifications
Product Datasheet
- 4E Datasheet
Physical Specifications
- Material: PET
- Label Size: 74×24 mm
- Inlay Size: 68×20 mm
Technical Parameters
- Operating Frequency: 860-960 MHz
- Communication Protocol: ISO/IEC 18000-6C, EPC Global Gen2v2
- Antenna Etching Mode: Aluminum etching (9µm)
- Operating Mode: Passive
- IC ESD Voltage Immunity: 2000V (HBM)
Chip Characteristics
- Chip Manufacturer: Contact Customer Service
- Chip Type: 4E
- TID Memory: 96 bits (Read-only)
- EPC Memory: 496 bits (Read & Write)
- User Memory: 128 bits (Read & Write)
- Access Password: 32 bits (Read & Write)
- Kill Password: 32 bits (Read & Write)
- Read Sensitivity: -19.5 dBm
- Write Sensitivity: -16.7 dBm
- Write Endurance: 100,000 write cycles
- Data Retention Time: 50 years
Additional Information
Operating Environment
- Operating Limits: -40°C to 70°C, 20% to 90% RH
- Storage Limits: 18°C to 28°C, 40% to 60% RH
Handling Precautions
- Do not bend the inlay.
- Keep away from water and collision.
- Do not use inlays with a black ink dot (indicating defective products).
Packaging
- Packing Format: In roll, vacuum-sealed in ESD bag
- Roll OD: Max. 185 mm
- Core ID: 3 inches (76.2 mm ± 0.50 mm)
- Packing Quantity: 500 pieces per roll, single roll weight: 0.318 kg
