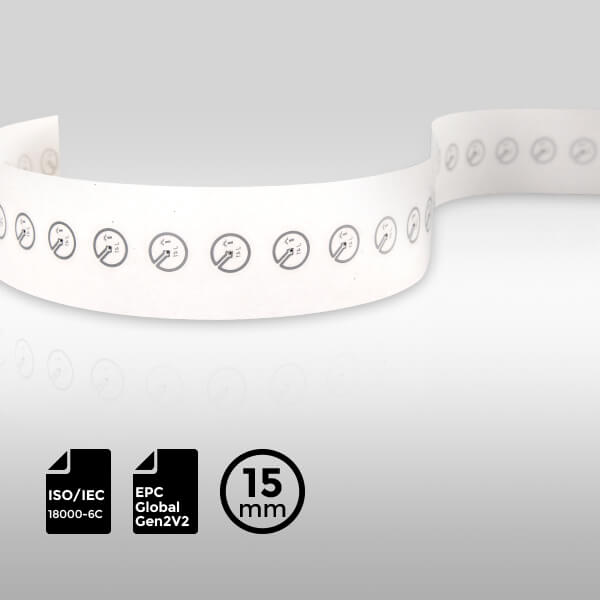

Ultra-Compact Round 15mm Diameter Wet Inlay with 4E Chip
Key Features and Benefits
- Ultra-Compact Design: 15mm diameter wet inlay, perfect for applications requiring minimal space.
- Robust Performance: Despite its small size, the inlay delivers high performance, making it suitable for various industry applications.
- Versatile Applications: Ideal for industries such as logistics, asset tracking, and smart packaging.
- Compliance: Fully compliant with ISO/IEC 18000-6C and EPC Global Gen2v2 standards.
Features
- Frequency Band: UHF 860-960 MHz
- Chip Type: 4E
- International Standards: ISO/IEC 18000-6C, EPC Global Gen2v2
- EPC Memory: 496 bits (Read & Write)
- User Memory: 128 bits (Read & Write)
- Environmental Compliance: WEEE compliant
Specifications
Product Datasheet
- 4E Datasheet
Physical Specifications
- Material: PET
- Label Size: Diameter 15 mm
- Inlay Size: Diameter 12 mm
Technical Parameters
- Operating Frequency: 860-960 MHz
- Communication Protocol: ISO/IEC 18000-6C, EPC Global Gen2v2
- Antenna Etching Mode: Aluminum etching (9µm)
- Operating Mode: Passive
- IC ESD Voltage Immunity: 2000V (HBM)
Chip Characteristics
- Chip Manufacturer: Contact Customer Service
- Chip Type: 4E
- TID Memory: 96 bits (Read-only)
- EPC Memory: 496 bits (Read & Write)
- User Memory: 128 bits (Read & Write)
- Access Password: 32 bits (Read & Write)
- Kill Password: 32 bits (Read & Write)
- Read Sensitivity: -19.5 dBm
- Write Sensitivity: -16.7 dBm
- Write Endurance: 100,000 write cycles
- Data Retention Time: 50 years
Additional Information
Operating Environment
- Operating Limits: -40°C to 70°C, 20% to 90% RH
- Storage Limits: 18°C to 28°C, 40% to 60% RH
Handling Precautions
- Do not bend the inlay.
- Keep away from water and collision.
- Do not use inlays with a black ink dot (indicating defective products).
Packaging
- Packing Format: In roll, vacuum-sealed in ESD bag
- Roll OD: Max. 220 mm
- Core ID: 3 inches (76.2 mm ± 0.50 mm)
- Packing Quantity: 1000 pieces per roll, single roll weight: 0.2 kg
Why Choose Our Ultra-Compact Round Wet Inlay?
- Small Footprint: Ideal for applications where space is limited.
- High Performance: Robust read/write capabilities despite its compact size.
- Versatile Applications: Suitable for logistics, asset tracking, and smart packaging.
- Compliance: Fully compliant with international RFID standards.
Enhance your RFID applications with our ultra-compact round wet inlay—designed for maximum efficiency and versatility.
