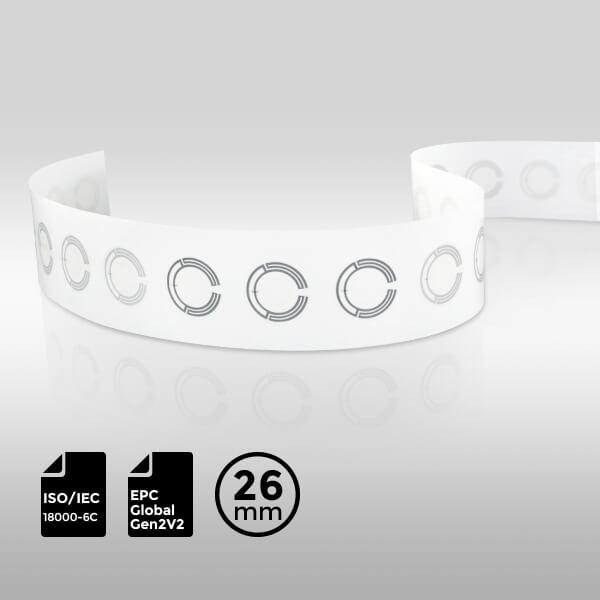

26-mm-Diameter Round RFID Wet Inlay with U9 Chip
Key Features and Benefits
- Streamlined Asset Tracking: Our 26-mm-diameter round RFID wet inlay offers efficient and reliable asset tracking.
- Advanced Chip Technology: Powered by the U9 chip, ensuring superior data integrity and operational efficiency.
- Compliance with Standards: Adheres to ISO 18000-6C and EPC Global Class 1 Gen 2 specifications.
- Versatile Applications: Suitable for inventory management, supply chain management, and product authentication.
Features
- Frequency Band: UHF 860-960 MHz
- Chip Type: U9
- International Standards: ISO 18000-6C, EPC Global Gen2v2.1
- TID Memory: 96 bits (Read-only)
- EPC Memory: 96 bits (Read & Write)
- Environmental Compliance: WEEE compliant
Specifications
Product Datasheet
- U9 Datasheet
Physical Specifications
- Material: PET
- Antenna Material: Aluminum
- Base Paper: 70g glassine
- Inlay Size: Outer diameter 26 mm, inner diameter 11 mm
- Antenna Size: Diameter 24 mm
Technical Parameters
- Operating Frequency: 860-960 MHz
- Communication Protocol: ISO/IEC 18000-6C, EPC Global Gen2v2.1
- Antenna Etching Mode: Aluminum etching
- Max. Read Range: Up to 2.4 meters
Additional Information
Operating Environment
- Operating Temperature: -40°C to 85°C
- Storage Environment: 18°C to 28°C, 40% to 60% RH
Applications
- Inventory management
- Supply chain management
- Product authentication
Handling Precautions
- Keep away from water and collision.
- Do not bend.
Chip Characteristics
- Chip Manufacturer: Contact Customer Service
- Chip Type: U9
- TID Memory: 96 bits (Read-only)
- EPC Memory: 96 bits (Read & Write)
- Kill Password: 32 bits (Read & Write)
- Read Sensitivity: -24 dBm
- Write Sensitivity: -22 dBm
- Encoding Speed: 32 bits in 0.96 ms
- Write Endurance: 100,000 write cycles
- Data Retention Time: 20 years
Packaging
- Packing Format: In roll, vacuum-sealed in ESD bag
- Roll OD: Max. 8 inches (about 203 mm)
- Core ID: 3 inches (76.20±0.50 mm)
- Packing Quantity: 1000 pieces per roll, single roll weight: 0.2307 kg
Why Choose Our 26-mm-Diameter Round RFID Wet Inlay?
- Compact Size: Ideal for applications with limited space.
- High Performance: Offers reliable tracking with a maximum read range of 2.4 meters.
- Robust Design: Durable and compliant with international standards.
- Efficient Packaging: Easy to handle and store, ensuring seamless integration into your operations.
