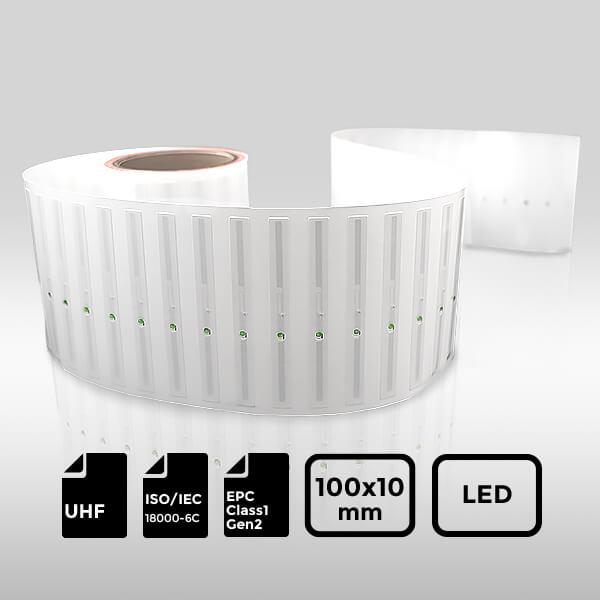

UHF RFID LED Label: Combining Wireless and Visual Tracking
Key Features
- Wireless and Visual Tracking: The UHF RFID LED Label integrates advanced wireless technology with LED lighting, allowing for easy tracking and locating of items.
- Search Function: When triggered, the LED lights on the label illuminate and flash, helping you quickly find the target item.
- Clear Visual Instructions: Provides clear visual guidance, making it easy to locate items even in dark environments or cluttered piles.
Features
- Frequency Band: UHF 860-960 MHz
- International Standard: ISO/IEC 18000-6C, EPC Class 1 Gen 2
- EPC Memory: 96-240 bits
Specifications
Physical Specifications
- Material: Coated Paper
- Label Size: 100×10 mm
- Antenna Size: 95×3 mm
- Antenna Type: Etched Aluminum (9µm)
Technical Parameters
- Operating Frequency: 860-960 MHz
- Communication Protocol: ISO/IEC 18000-6C, EPC Class 1 Gen 2
- Operating Mode: Passive
- Sensitivity: -23.5 dBm
Chip Characteristics
- EPC Memory: 96-240 bits
- User Memory: 1312 bits
- TID Memory: 96-192 bits
- Password Memory: 64 bits
- IC Life: 50 years
- Anti-collision: Yes
- ESD Voltage Immunity: 2000V
Additional Information
Operating Environment
- Temperature: 10°C to 40°C
- Humidity: 20% to 80%
Storage Environment
- Temperature: -20°C to 50°C
- Humidity: 20% to 80%
Shelf Life
- Duration: 1 year at 23 ± 5°C/50% ± 10% RH, sealed in a vacuum bag and avoiding direct sunlight exposure.
Handling Precautions
- Keep away from water and collision.
- Do not bend.
Packaging
- Packing Format: Roll, vacuum-sealed in ESD bag
- Packing Quantity: 2000 ± 2 pieces per roll
- Packing Method: 4 rolls per carton (actual quantity as per shipping mark)
- Special Requirement: The box should be fully sealed without leaving any gaps.
Why Choose Our UHF RFID LED Label?
- Enhanced Visibility: LED lights make it easy to locate items even in challenging conditions.
- Robust Performance: Complies with international standards and offers long-lasting durability.
- Efficient Packaging: Easy to handle and store, ensuring seamless integration into your operations.
- Versatile Applications: Ideal for inventory management, asset tracking, and more.
