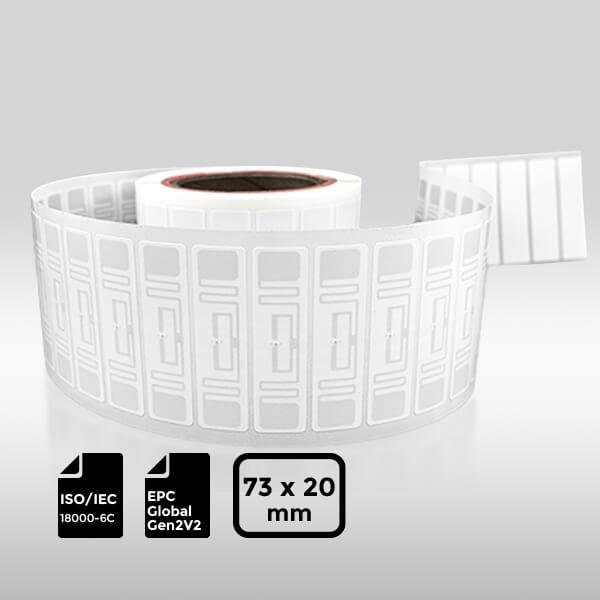

Advanced UHF RFID Label with U9
Key Features
- Enhanced Inventory Management: Improve your inventory tracking with our advanced UHF RFID Label.
- Chip Technology: Equipped with the U9 chip.
- Custom Printing: Flexibility to print custom information using thermal transfer.
- Compliance: Fully compliant with ISO/IEC 18000-6C and EPC Global Gen2v2.1 standards.
- Material: Made from durable coated paper.
Features
- Frequency Band: UHF 860-960 MHz
- Chip Type: U9
- International Standard: ISO/IEC 18000-6C, EPC Global Gen2v2.1
- EPC Memory: 96 bits (Read & Write)
- TID Memory: 96 bits (Read-only)
- Environmental Compliance: WEEE compliant
Specifications
Product Datasheet
- U9 Datasheet
Physical Specifications
- Material: Coated Paper
- Label Size: 73×20 mm
- Antenna Size: 70×15 mm
Technical Parameters
- Operating Frequency: 860-960 MHz
- Communication Protocol: ISO/IEC 18000-6C, EPC Global Gen2v2.1
- Antenna Etching Mode: Aluminum etching (9µm)
- ESD Voltage Immunity: 2000V (HBM)
Additional Information
Operating Environment
- Label Attach: +10°C to +40°C, 20% to 80% RH
- After Label Attached: -20°C to +50°C, 20% to 80% RH
- Storage Environment: 18°C to 28°C, 40% to 60% RH
Handling Precautions
- Do not bend the label.
- Keep away from water and collision.
- Do not use labels with black-dot marks (indicating defective products).
Chip Characteristics
- Chip Manufacturer: Contact Customer Service
- Chip Type: U9
- TID Memory: 96 bits (Read-only)
- EPC Memory: 96 bits (Read & Write)
- Read Sensitivity: -24 dBm
- Write Sensitivity: -22 dBm
- Encoding Speed: 32 bits in 0.96 ms
- Kill Password: 32 bits (Read & Write)
- Write Endurance: 100,000 write cycles
- Data Retention Time: 20 years
Packaging
- Packing Format: In roll, vacuum-sealed in ESD bag
- Roll OD: Max. 160 mm
- Core ID: 3 inches (76.20±0.50 mm)
- Packing Quantity: 1000 pieces per roll, single roll weight: 0.5515 kg
Why Choose Our UHF RFID Label?
- Reliable Performance: High read/write sensitivity and long data retention.
- Customizable: Supports thermal transfer printing for custom information.
- Durable: Made from coated paper and designed to withstand challenging environments.
- Compliant: Fully compliant with international RFID standards.
- Efficient Packaging: Easy to handle and store, ensuring seamless integration into your operations.
