Product Overview

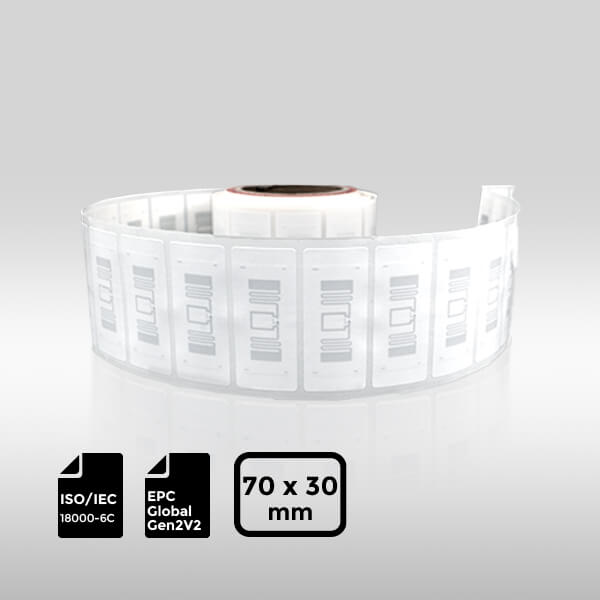

- The 70x30mm UHF RFID Label features the U7 chip, offering unparalleled tracking precision.
- Fully ISO 18000-6C compliant, it provides fast read rates and superior data integrity.
- Ideal for smooth asset management and inventory tracking.
Features
- Frequency Band: UHF 860-960 MHz
- Chip Type: U7
- International Standard: ISO 18000-6C, EPC Global Gen2v2
- TID Memory: 96 bits
- EPC Memory: 128 bits
- Certificate: WEEE compliant
Specifications
Physical Specifications
- Material: Coated Paper
- Label Size: 70×30 mm
- Antenna Size: 40×15 mm
Technical Parameters
- Operating Frequency: 860-960 MHz
- Communication Protocol: ISO/IEC 18000-6C, EPC Global Gen 2v2
- Antenna Programming Mode: Aluminum etching (9µm)
- IC ESD Voltage Immunity: 2000V (HBM)
Additional Information
- Operating Environment: -20°C~50°C, 20%~80% RH
- Storage Environment: 18°C~28°C, 40%~60% RH
- Applications: Inventory management, asset tracking, supply chain logistics, etc.
- Handling Precautions:
- Keep away from water and collision.
- Do not bend.
Chip Characteristics
- Chip Manufacturer: Contact Customer Service
- Chip Type: U7
- TID Memory: 96 bits (read-only)
- EPC Memory: 96 bits (read & write)
- Read Sensitivity: -21 dBm
- Write Sensitivity: -16 dBm
- Reserved Memory:
- Access password: 32 bits (read & write)
- Kill password: 32 bits (read & write)
- Parallel Encoding Mode: 100 items in 60 ms
- Encoding Speed: 16 bits per millisecond
- Write Endurance: 100,000 times
- Data Retention Time: 20 years
Packaging
- Packing Format: In roll, vacuum-packed in an ESD bag
- Roll OD: Max. 181 mm
- Core ID: 3 inch (76.20±0.50 mm)
- Packing Quantity: 1000 Pcs/roll, single roll weight 0.814 kg
