Product Overview

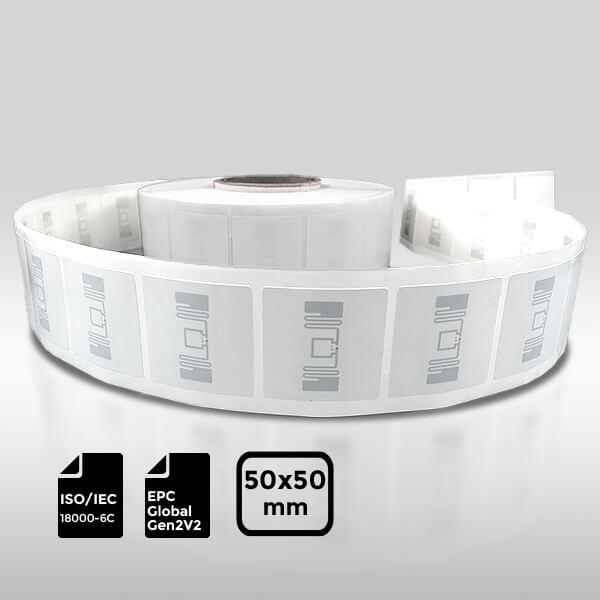

- Discover the versatility of the R6P 50x50mm UHF RFID Label.
- A popular choice for advanced library management, it is also suitable for broader applications such as asset tracking, retail inventory management, and logistics.
- ISO 18000-6C compliant, this label provides reliable tracking capabilities and efficient asset management across various sectors.
Features
- Frequency Band: UHF 860-960 MHz
- Chip Type: R6-P
- International Standard: ISO/IEC 18000-6C, EPC Global Gen2v2
- EPC Memory: 128/96 bits
- User Memory: 32/64 bits
- Certificate: WEEE compliant
Specifications
Physical Specifications
- Material: Coated Paper
- Label Size: 50×50 mm
- Inlay Size: 40×15 mm
Technical Parameters
- Operating Frequency: 860-960 MHz
- Communication Protocol: ISO/IEC 18000-6C, EPC Global Gen2v2
- Antenna Etching Mode: Aluminum etching
- Operating Mode: Passive
- IC ESD Voltage Immunity: Max. 2000V
Chip Characteristics
- Chip Manufacturer: Contact Customer Service
- Chip Type: R6-P
- TID Memory: 96 bits
- EPC Memory: 128/96 bits
- User Memory: 32/64 bits
- AutoTune™ Automatic RF Tuning: Standard
- Integra™ Memory Diagnostics: Standard
- Enduro™ Robust Bonding Construction: Copper plating
- Tag Data Protection Features: Access/Kill Short-range mode
- Read Sensitivity: -22 dBm
- Write Sensitivity: -17 dBm
- FastID™ High-speed Reading: Yes
- TagFocus™ Read Redundancy Prevention: Yes
- Write Endurance: 100,000 times
- Data Retention: 50 years
Additional Information
- Operating Environment: -40°C~70°C, 20%~90% RH
- Storage Environment: 18°C~28°C, 40%~60% RH
- Handling Precautions:
- Do not bend.
- Keep away from water and collision.
- Inlays with a black ink dot are for defective products and should not be used.
Packaging
- Packing Format: In roll, vacuum-packed in an ESD bag
- Roll OD: Max. 8 inches (about 203 mm)
- Core ID: 3 inches (76.2 mm ± 0.50 mm)
- Packing Quantity: 3000 Pcs/roll, single roll weight 0.63 kg.
