Product Overview

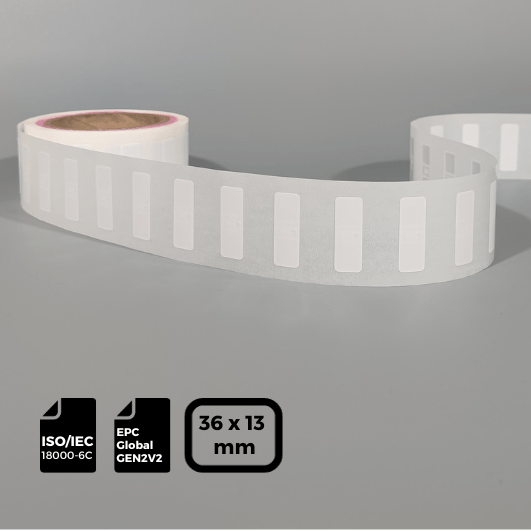

- Experience unmatched tracking with the R6P 36x13mm UHF RFID Label.
- Complies with ISO 18000-6C standards, ensuring accurate data capture and a streamlined inventory process.
- Its sleek design makes it ideal for various applications, offering robust performance without compromising aesthetics.
- Elevate your asset management with precision, reliability, and efficiency in this cutting-edge RFID solution.
Features
- Frequency Band: UHF 860-960 MHz
- Chip Type: R6-P
- International Standard: ISO/IEC 18000-6C, EPC Global Gen2V2
- EPC Memory: 128 bits
- User Memory: 96 bits
- Read Sensitivity: -22 dBm
Specifications
Physical Specifications
- Label Size: 36×13 mm
- Antenna Size: 33×10 mm
- Thickness: 0.25 mm / 0.010 in
- Core Diameter: 3 inches
- Outer Diameter: 8 inches max
- Labels per Roll: 1000-5000
RF Specifications
- IC Type: R6P
- Support Protocols: ISO/IEC 18000-6C, EPC Global Gen2V2
- Frequency: 860-960 MHz
- Read/Write EPC: 128 bits
- Read Only TID: 96 bits
- Read/Write User Memory: 32 bits
- Read Sensitivity: -22 dBm
- Write Sensitivity: -17 dBm
Environmental Specifications
- Operating Limits: -40° to +70°C, 20% to 90% RH
- Storage Limits: -25° to +90°C, 20% to 90% RH
Material Selection
- Tamper-Evidence: Available
- Material Options:
- PET | Clear PET
- Coated Paper ✔️
- PP Synthetic Paper ✔️
- On-Metal
