Product Overview

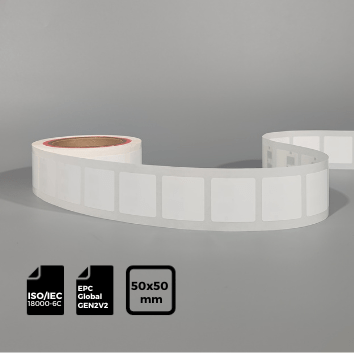

- Experience the next level of RFID tracking with the UHF RFID Label 50x50mm featuring 4QT technology.
- Conforming to ISO 18000-6C and EPC Global G2V2 standards, this label offers advanced data protection, optimal read ranges, and rapid inventory capabilities.
- Ideal for robust asset management across industries.
Features
- Frequency Band: UHF 860-960 MHz
- Chip Type: M4QT
- International Standard: ISO/IEC 18000-6C, EPC Global Gen2
- EPC Memory: 128 bits
- TID Memory: 96 bits
- Read Sensitivity: -19.5 dBm
Specifications
Physical Specifications
- Label Dimensions: 50×50 mm
- Antenna Dimensions: 44×44 mm
- Thickness: 0.25 mm / 0.010 in
- Core Diameter: 3 inches
- Outer Diameter: 8 inches max
- Labels per Roll: 1000-5000
RF Specifications
- IC Type: Contact Customer Service M4QT
- Support Protocols:
- ISO/IEC 18000-6C
- EPCglobal Gen2
- Frequency: 860-960 MHz
- Read Only TID: 96 bits
- Read/Write EPC: 128 bits
- User Memory: 512 bits
- Read Sensitivity: -19.5 dBm
- Write Sensitivity: -16.7 dBm
Environmental Specifications
- Operating Limits: -40° to +70°C, 20% to 90% RH
- Storage Limits: -25° to +90°C, 20% to 90% RH
Material Selection
- PET | Clear PET
- Coated Paper
- PP Synthetic Paper ✔️
- Anti-Metal
