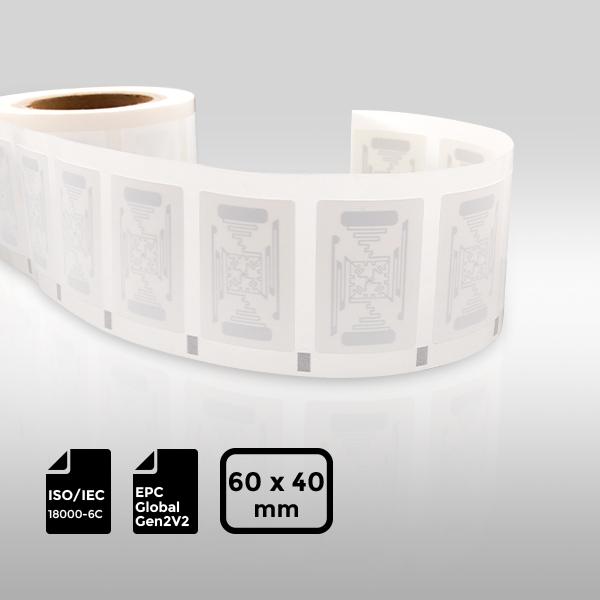

Discover Unparalleled Performance with Our 60×40 mm UHF RFID Label:
- Advanced Chip: Engineered with the 4E chip.
- Standard Compliance: Fully compliant with ISO/IEC 18000-6C and EPC global Gen2 standards.
- Superior Performance: Delivers superior reading range and unbeatable data security.
- Optimized Antenna Design: Ensures consistent and reliable tracking across various applications.
- Ideal Applications: Suitable for supply chain management, asset tracking, and more.
Features:
- Frequency Band: 860-960 MHz.
- Chip Type: M4E.
- International Standard: ISO/IEC 18000-6C, EPCglobal Gen2.
- TID Memory: 96 bits.
- EPC Memory: 496 bits.
- User Memory: 128 bits.
Specifications:
Physical Specifications:
- Label Dimensions: 60×40 mm.
- Thickness: 0.25 mm (0.010 in).
- Core Diameter: 3 inches.
- Outer Diameter: Max. 8 inches.
- Labels per Roll: 1000-5000.
RF Specifications:
- IC Type: M4E.
- Supported Protocols: ISO/IEC 18000-6C, EPCglobal Gen2.
- Frequency: 860-960 MHz.
- Read-Only TID: 96 bits.
- Read/Write EPC: 496 bits.
- User Memory: 128 bits.
- Read Sensitivity: -19.5 dBm.
- Write Sensitivity: -16.7 dBm.
Environmental Specifications:
- Operating Limits: -40°C to +70°C, 20% to 90% RH.
- Storage Limits: -25°C to +90°C, 20% to 90% RH.
Material Selection:
- PET.
- Clear PET.
- Coated Paper.
- PP Synthetic Paper.
- Wet Inlay.
