Product Overview

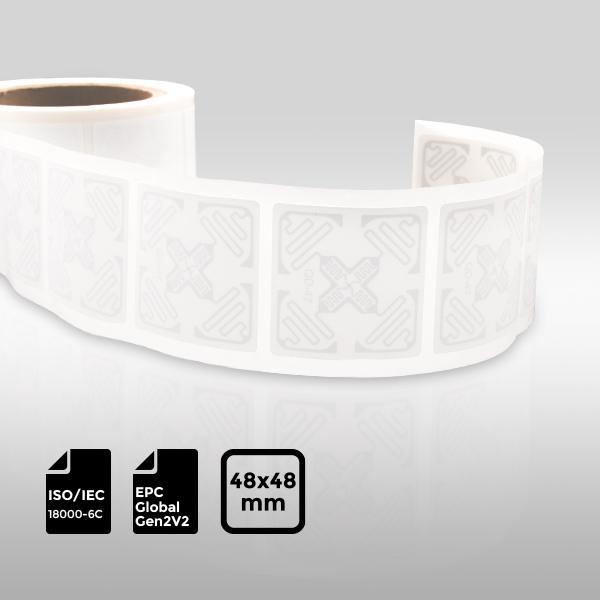

- Step up your tracking with our 48x48mm UHF RFID Label, featuring the revolutionary 4E chip.
- Fully compliant with ISO 18000-6C and EPCglobal Gen2 V2 standards.
- Offers unparalleled reading ranges and robust data security, with adaptive bit rates and advanced privacy features.
- Ideal for complex supply chain solutions, asset management, and secure inventory systems.
Features
- Frequency Band: UHF 860-960 MHz
- Chip Type: 4E
- International Standard: ISO/IEC 18000-6C, EPC Global Gen2v2
- EPC Memory: 496 bits
- User Memory: 128 bits
- Certificate: WEEE compliant
Specifications
Physical Specifications
- Material: PP Synthetic Paper
- Label Size: 48×48 mm
- Inlay Size: 44×44 mm
Technical Parameters
- Operating Frequency: 860-960 MHz
- Communication Protocol: ISO/IEC 18000-6C, EPC Global Gen2v2
- Antenna Etching Mode: Aluminum etching (9µm)
- Operating Mode: Passive
- IC ESD Voltage Immunity: 2000V (HBM)
Chip Characteristics
- Chip Manufacturer: Contact Customer Service
- Chip Type: 4E
- TID Memory: 96 bits (read-only)
- EPC Memory: 496 bits (Read & Write)
- User Memory: 128 bits (Read & Write)
- Reserved Memory:
- Access Password: 32 bits (Read & Write)
- Kill Password: 32 bits (Read & Write)
- Read Sensitivity: -19.5 dBm
- Write Sensitivity: -16.7 dBm
- Write Endurance: 100,000 times
- Data Retention Time: 50 years
Additional Information
- Operating Environment: -40°C~70°C, 20%~90% RH
- Storage Environment: 18°C~28°C, 40%~60% RH
- Handling Precautions:
- Do not bend.
- Keep away from water and collision.
- Inlays with a black ink dot are for defective products and should not be used.
Packaging
- Packing Format: In roll, vacuum-packed in an ESD bag
- Roll OD: Max. 185 mm
- Core ID: 3 inches (76.2 mm ± 0.50 mm)
- Packing Quantity: 500 Pcs/roll, single roll weight 0.431 kg.
