Product Overview

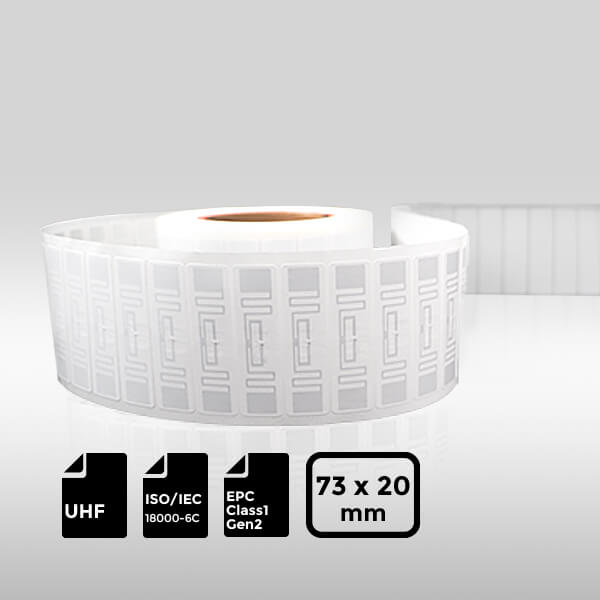

- The M730 RFID Label is a high-performance, versatile label designed for various industrial and commercial applications.
- Utilizes the advanced IMP M730 chip to enable solutions for high-speed inventory counting, loss prevention, frictionless self-checkout, and seamless product returns.
- Offers a range of EPC and user memory configurations, including cryptographic authentication capabilities, providing unparalleled versatility and security.
Features
- Frequency Band: UHF 860-960 MHz
- Chip Type: Contact Customer Service M730
- International Standard: ISO/IEC 18000-6C, EPC Class1 Gen2
- EPC Memory: 128 bits
- Password Memory: Access/Kill shared
- Certificate: WEEE compliant
Specifications
Physical Specifications
- Material: PET
- Label Size: 73×20 mm
- Antenna Size: 70×14 mm
- Antenna: Etched Aluminum (10µm) + PET (50µm)
Technical Characteristics
- Operating Frequency: 860-960 MHz
- Communication Protocol: ISO/IEC 18000-6C, EPC Class 1 Gen 2
- Operating Mode: Passive
- Write Sensitivity: -21 dBm
- Reading Sensitivity: -24 dBm
Chip Characteristics
- Chip Manufacturer: Contact Customer Service
- Chip Type: M730
- Password Memory: Access/Kill shared
- EPC Memory: 128 bits
- TID Memory: 96 bits
- User Memory: 0 bits
- Tag Data Protection: Protected Mode
- Omnidirectional Reading: IMP Core3D Antenna
- ESD Voltage Immunity: Max 2000V
Useful Information
- Storage Environment:
- Temperature: 10°C~40°C
- Humidity: 20%~80% RH
- Operating Environment:
- Temperature: -20°C~50°C
- Humidity: 20%~80% RH
- Shelf Life:
- 1 year at 23±5°C/50%±10% RH, sealed in a vacuum bag and avoiding direct sunlight exposure.
- Handling Precautions:
- Suitable for high-volume retail industry, automotive industry, supply chain and logistics, and high-sensitivity scenarios.
Packaging
- Packing Quantity: 5000 pcs/roll
- Packing Method:
- Label Size: Packed in roll, vacuum-packed in an ESD bag
- Reel core inner dimension: 76.2 mm (3 inches)
- Installation: Directly stick on objects.
