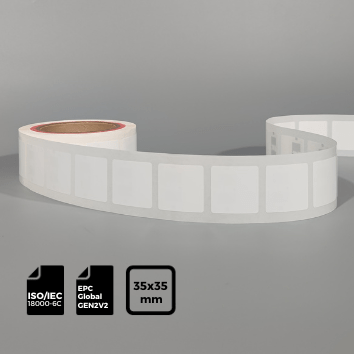

Experience Next-Level Tracking with UHF RFID Label 35×35mm:
- Advanced Chip: Equipped with the U9 chip.
- Standard Compliance: ISO/IEC 18000-6C, EPC Global Gen2v2.1.
- Superior Performance: Offers superior read ranges, rapid inventory speeds, and robust data security.
- Applications: Ideal for diverse sectors including logistics, retail, and more.
Features:
- Frequency Band: UHF 860-960 MHz.
- Chip Type: U9.
- International Standard: ISO/IEC 18000-6C, EPC Global Gen2v2.1.
- EPC Memory: 96 bits.
- TID Memory: 96 bits.
- Read Sensitivity: -24 dBm.
Specifications:
Physical Specifications:
- Label Size: 35×35 mm.
- Antenna Size: 22×12.5 mm.
- Thickness: 0.25 mm (0.010 in).
- Core Diameter: 3 inches.
- Outer Diameter: Max. 8 inches.
- Labels per Roll: 1000-5000.
RF Specifications:
- IC Type: U9.
- Supported Protocols: ISO/IEC 18000-6C, EPCglobal Gen2V2.1.
- Frequency: 860-960 MHz.
- Read/Write EPC: 96 bits.
- Read-Only TID: 96 bits.
- Read Sensitivity: -24 dBm.
- Write Sensitivity: -22 dBm.
Environmental Specifications:
- Operating Limits: -40°C to +70°C, 20% to 90% RH.
- Storage Limits: -25°C to +90°C, 20% to 90% RH.
Material Selection:
- Wet Inlay.
- PET | Clear PET.
- Coated Paper.
- PP Synthetic Paper.
- Anti-Metal.
