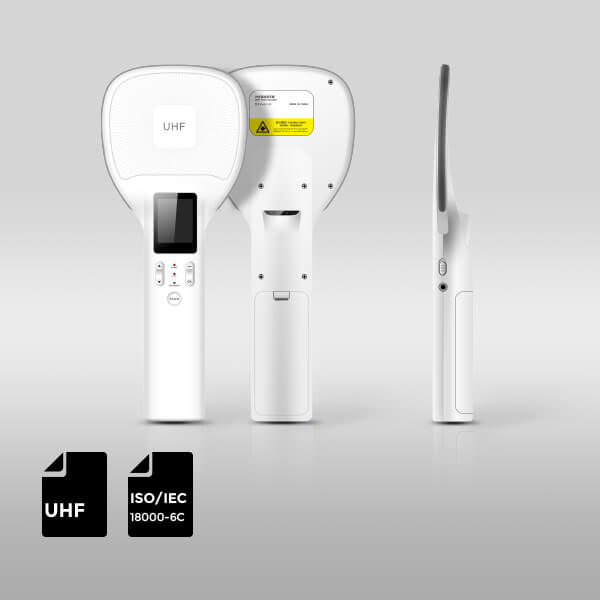

Handheld Data Collection Device:
- Stylish Design: Ergonomic and user-friendly.
- Superior Performance: Delivers high-speed UHF reading and writing, barcode scanning, and seamless data transmission via Bluetooth.
- Versatile Applications: Ideal for inventory management, asset management, inspection, and more.
Features:
- Frequency Band: 920-925 MHz / 902-928 MHz / 865-868 MHz.
- Engine: IMP E710.
- International Standard: EPC C1 GEN2, ISO18000-6C.
- Fastest Read Rate: 900+ tags/sec.
- Bluetooth: Bluetooth Low Energy (BLE) 5.0.
- Max Read Range: 31 meters.
Specifications:
Physical Specifications:
- Dimensions: 282 x 117.5 x 32 mm | 11.10 x 4.63 x 1.26 in.
- Weight: 334 g / 11.78 oz. (with battery).
- Color: White.
- Antenna Material: Plastic.
- Keypad: 8PWR button (side), up, down, return, ok, SCAN button (front).
- Power:
- Battery: 5200 mAh removable battery.
- Standby: Over 70 hours (with Bluetooth connected).
- Continuous Use: Up to 6 hours (UHF reading).
- Charging Time: 3–4 hours (with standard adapter and USB cable).
- Display: 1.77 inch, 128 x 160.
- Indicator LEDs: Power, Work, Bluetooth.
- Buzzer: Supported.
- Interface: Type-C.
Performance:
- MCU: Cortex-M3 | 72 MHz.
- Storage: 50,000 tags.
Developing Environment:
- Software Development Kit: Android | iOS.
- Language: Java.
- Tools: Xcode / Android Studio.
Communications:
- Bluetooth: BLE 5.0.
RF Specifications:
- Engine: Based on IMP E710.
- Antenna: Linear Polarized antenna (4 dBi).
- Frequency: 865-868 MHz | 902-928 MHz | 920–925 MHz.
- Protocol: EPC GEN2, ISO18000-6C.
- Module Power: 1W (30 dBm, adjustable from +5 to +30 dBm).
- Optional Power: 2W (33 dBm, for Latin America, etc.).
- Max Read Range:
- 26m (IMP MR6 tag, 70×15 mm).
- 26m (IMP M750 tag, 70×15 mm).
- 31m (Alien H3 Anti-Metal tag, 130×42 mm).
- Fastest Read Rate: 900+ tags/sec.
- Notes: Ranges and rates are measured in open, low-interference environments and are affected by tags and environment.
Environmental Specifications:
- Operating Limits: -20°C to +50°C, 5% to 95% RH.
- Storage Limits: -40°C to +70°C, 5% to 95% RH.
- Drop Specification: Multiple 1.5 m / 4.9 ft. drops to concrete across the operating temperature range.
- Tumble Specification: 1000 x 0.5 m / 1.64 ft. falls at room temperature.
- ESD: ±15 KV air discharge, ±8 KV conductive discharge.
Accessories:
- AC Adapter.
- USB Cable.
