Product Overview:

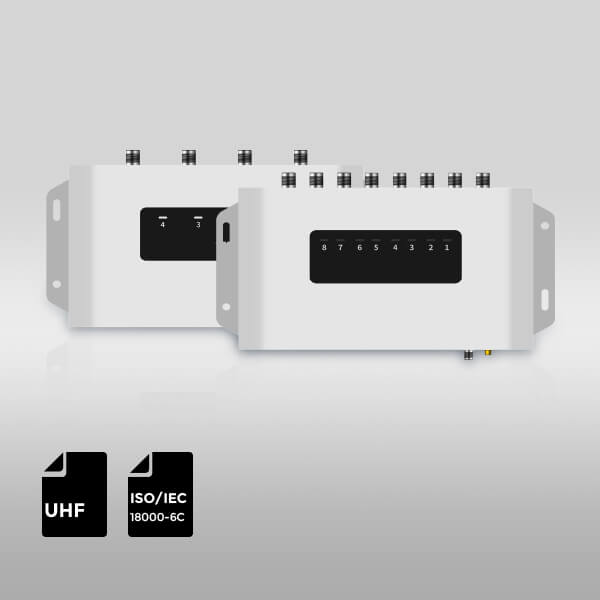

- This is a newly launched high-performance fixed RFID reader.
- It adopts the Android 11 operating system and features a 2.0GHz quad-core CPU with powerful data processing capabilities.
- The reader integrates multiple interfaces, including RS232, RJ45, HDMI, and supports DC, POE, and POE+ power supplies.
- It is designed to meet application needs in complex environments such as warehousing, file management, library management, production line management, medical device cabinets, and unmanned retail.
Features:
- Frequency Band: UHF 860-960 MHz.
- Engine: IMP E710 / IMP Indy R2000.
- International Standard: ISO 18000-6C, EPC Class 1 Gen 2.
- CPU: Quad-core, 2.0GHz.
- RAM + ROM: 2 GB + 16 GB.
- Ethernet Interface: 10/100 Base-T Ethernet (RJ45).
- WLAN: IEEE 802.11 b/g/n, 2.4G.
- Bluetooth: Bluetooth 4.0.
Physical Specifications:
- Dimensions: 247 x 151 x 35 mm | 9.72 x 5.94 x 1.38 in.
- Weight: 1000 g / 35.27 oz. (host only).
- Material: Aluminum alloy.
- Input Voltage: DC 10V–24V.
- Standby Current: <140 mA.
- Work Current: 600mA ± 5% @DC 24V Input.
- Communication Interface: RS-232, RJ45, USB Host, USB Device.
- Display Interface: HDMI Type A, supports 720P HD video output.
- Interface: 4 x input optocouplers, 4 x output optocouplers, with isolation, 1 x Wiegand.
- Baud Rate: 115200 bps.
- Cooling Mode: Air cooling.
- Power: DC (24V), POE (802.3af 13W), POE+ (802.3at 25.5W).
Developing Environment:
- Software Development Kit: Supported.
- Language: Java.
- Tool: Eclipse/Android Studio.
- Operating System: Android 11.
RF Specifications:
- Engine: Based on IMP E710 | R2000.
- Frequency: 865-868 MHz | 902-928 MHz | 920–925 MHz.
- Protocol: EPC GEN2 | ISO18000-6C.
- Output Power:
- 1W (30dBm, supports +5-+30 dBm adjustable, POE/DC power).
- 2W Optional (33 dBm, supports +10-+33 dBm adjustable, POE+/DC power, for Latin America, etc.).
- Output Power Precision: ± 1 dB.
- Output Power Flatness: ± 0.2 dB.
- Receive Sensitivity: <-84dBm.
- Fastest Read Rate: 950+ tags/sec.
- RSSI: Supported.
- Ambient Temp Monitor: Supported.
- Antenna Detector: Supported.
- Antenna: Supports a variety of antennas, such as 6dBic, 9dBic, etc.
- Antenna Port: 4 x Channel 50Ω RF Connector RP-TNC Female.
Environmental Specifications:
- Operating Limits: -20°C to +65°C, 10% to 95% RH.
- Storage Limits: -40°C to +85°C, 10% to 95% RH.
Support and Accessories:
- Product Datasheet:
- User Manual: Available.
- SDK: Supported.
- Compatible RFID Antennas:
- ISO 18000-6C Compliant UHF 12-dBi RFID Antenna.
- ISO 18000-6C UHF 5-dBi RFID Antenna.
- ISO 18000-6C UHF 9-dBi RFID Antenna.
- Cables:
- 5-meter cable for 5 dBi.
- 15-meter cable for 9 & 12 dBi.
