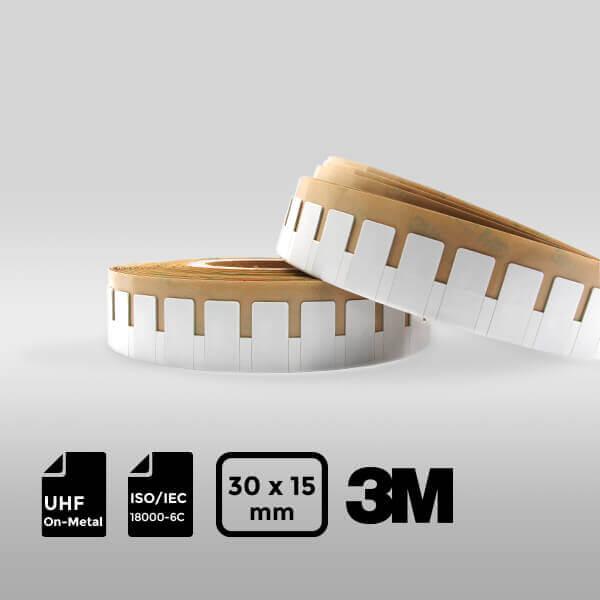

Flexible & Printable UHF On-Metal Label:
- Durability and Customization: A high-performance RFID label that is durable, customizable, and easily printable and encodable.
- Versatile Applications: Ideal for metallic container tracking, equipment and device tracking, warehouse shelf tracking, automotive components tracking, IT asset tracking, and more.
- Adhesion: Can be easily stuck to metallic assets, especially on irregular and uneven surfaces.
Features:
- Frequency Band: UHF 860-960 MHz.
- Chip Type: U8.
- International Standard: EPC C1G2 (ISO18000-6C) and EPC Gen2v2.
- EPC Memory: 128 bits.
- IP Rating: IP68 (tested for 5 hours at 1 meter deep water).
- Certificate: WEEE compliant.
Specifications:
Physical Specifications:
- Material: PET & Aluminum Foil & Foam.
- Label Size: 30×15×1.25 mm.
- IP Rating: IP68; tested for 5 hours at 1 meter deep water.
- Personalized Printing: Logo, barcode, QR code, number printing, encoding, etc.
Additional Information:
- Supported Printers: SATO CL4NX, Zebra ZT410 Silverline, Postek TX3r, etc.
- Applications: Metallic container tracking, equipment and device tracking, warehouse shelves, automotive components, IT asset tracking, etc.
RF Specifications:
- IC Type: Contact Customer Service U8.
- Supported Protocols: ISO/IEC 18000-6C, EPC Global Gen2.
- Frequency: 860–960 MHz.
- Read/Write EPC: 128 bits.
- TID Memory: 96 bits.
- Read Sensitivity: -23 dBm.
- Write Sensitivity: -18 dBm.
- Read Distance:
- Fixed Reader: 2.7m on-metal, 1.7m off-metal (FCC standard).
- Handheld Reader: 1.5m on-metal, 1m off-metal (FCC standard).
- Access Password: 32 bits.
- Data Retention: > 10 years.
- Write Endurance: 100,000 cycles.
Environmental Specifications:
- Operating Limits: -40°C to 85°C.
- Storage Limits: -40°C to 120°C.
Packaging:
- Packing Quantity: 500 pcs/roll.
- Packing Method: Packed in rolls.
- Reel Core Inner Diameter: 76.2 mm (3 inches).
- Installation: Directly stick on objects.
