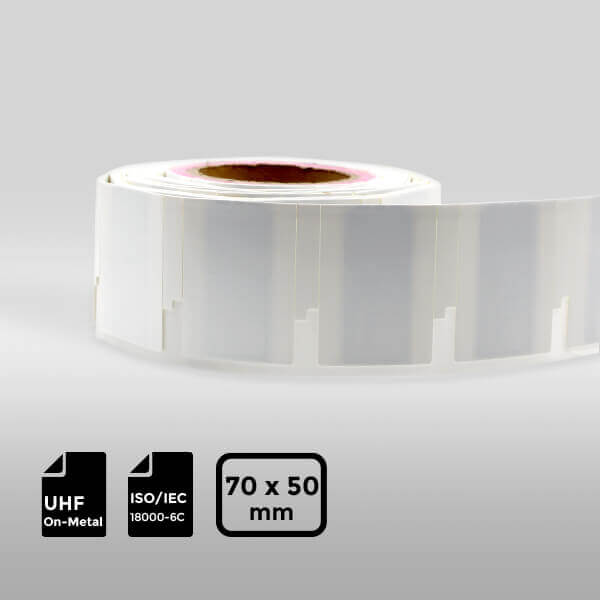

Flexible & Printable UHF On-Metal Label:
- A durable, customizable, high-performance RFID label that can be easily printed and encoded.
- Ideal for tracking metallic containers, equipment, devices, warehouse shelves, automotive components, IT assets, and more.
- Can be easily stuck to metallic assets, especially on irregular and uneven surfaces.
Features:
- Frequency Band: UHF 860-960 MHz.
- Chip Type: R6-P.
- International Standard: ISO 18000-6C, EPC Global Gen2v2.
- EPC Memory: 128 | 96 bits.
- User Memory: 32 | 64 bits.
- Certificate: WEEE compliant.
Specifications:
Physical Specifications:
- Material: PET & Aluminum Foil & Foam.
- Label Size: 70×50×1 mm.
- IP Rating: IP68; tested for 5 hours at 1 meter deep water.
- Personalized Printing: Logo, barcode, QR code, number printing, encoding, etc.
Additional Information:
- Supported Printers: SATO CL4NX, Zebra ZT410 Silverline, Postek TX3r, etc.
- Applications: Metallic container tracking, equipment and device tracking, warehouse shelves, automotive components, IT asset tracking, etc.
RF Specifications:
- IC Type: R6-P.
- Supported Protocols: ISO 18000-6C, EPC Global Gen2v2.
- Frequency: 860–960 MHz.
- Read/Write EPC: 128 | 96 bits.
- Read/Write User Memory: 32 | 64 bits.
- Read Sensitivity: -22 dBm.
- Write Sensitivity: -17 dBm.
- Read Distance: 8 meters on-metal (2W ERP FCC).
- Tag Data Protection Features: Access / Kill short-range mode.
- Data Retention: > 10 years.
- Write Endurance: 100,000 times.
Environmental Specifications:
- Operating Limits: -40°C to 85°C.
- Storage Limits: -40°C to 120°C.
Packaging:
- Packing Quantity: 200 pcs/roll.
- Packing Method: Packed in rolls.
- Reel Core Inner Diameter: 76.2 mm (3 inches).
- Installation: Directly stick on objects.
