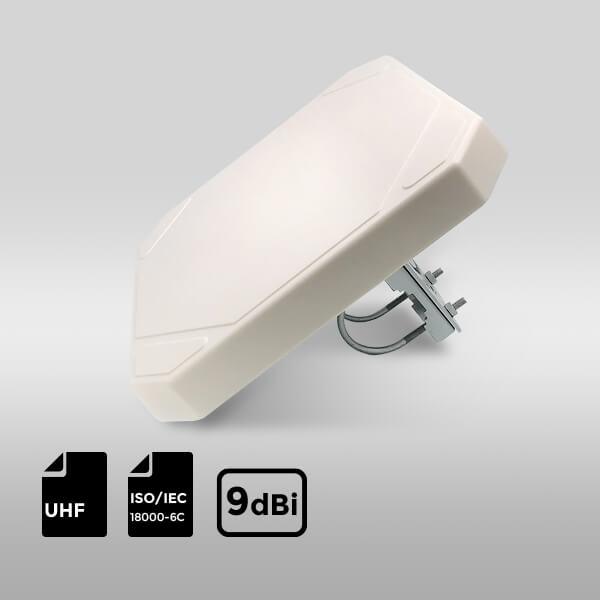

UHF RFID Antenna 9dBi:
- High-Speed Reading and Writing: Supports long-distance, high-volume tag identification.
- High Data Security: Ensures outstanding performance with robust data protection.
- Compact and Lightweight: Low-profile design for easy installation.
- High Protection Rating: IP67 rating for durability in harsh environments.
- Versatile Applications: Widely used in logistics, warehousing, transportation, retail, medical, power, finance, ticketing, animal husbandry, and more.
Features:
- Frequency Band: UHF 860-960 MHz.
- International Standard: ISO/IEC 18000-6C.
- IP Rating: IP67.
- Gain Values: 9 dBi.
- Wind Resistance: 60 m/s.
- Installation Method: Pole-mounting or wall-mounted.
Specifications:
Physical Specifications:
- Dimensions: 255 x 255 x 30 mm.
- Weight: 1.27 kg.
- Shell Material: ABS.
- Radiation Plate Material: Aluminum.
- Interface Form: M female.
- IP Rating: IP67.
Installation:
- Method: Pole-mounting or wall-mounted.
- Support Rod Diameter: 30-50 mm.
Technical Parameters:
- Frequency: 865-868 MHz | 902-928 MHz.
- Protocol: EPC C1G2 | ISO18000-6C.
- Horizontal Angle: 60°.
- Vertical Angle: 55°.
- Polarization: Circular Polarization (right-handed).
- Standing Wave Ratio: ≤1.3.
- Gain Values: 9 dBi.
- Antenna Front-to-Back Ratio: ≥17 dB.
- Characteristic Impedance: 50Ω.
- Maximum Input Power: 20W.
Environmental Specifications:
- Operating Limits: -40°C to +60°C, DC grounding.
- Wind Resistance: 60 m/s.
