Product Overview

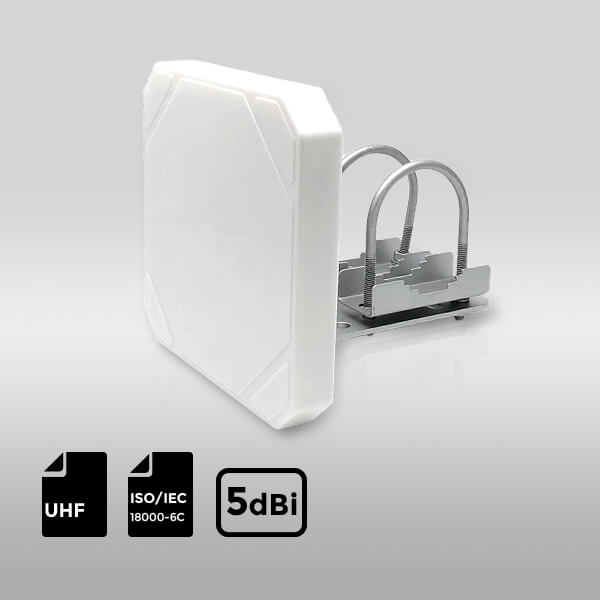

- The UHF RFID Antenna 5dBi features a high front-to-back ratio, narrow sidelobes, and a 5dBi gain.
- Ensures stable performance and accurate, rapid multi-label reading and writing.
- Offers a moderate read-write distance and high data security despite its small size, lightweight, and low profile.
- With an IP67 protection rating, it is widely used in logistics, storage management, access control, production line management, and material management.
Features
- Frequency Band: UHF 860-960 MHz.
- International Standard: ISO/IEC 18000-6C.
- IP Rating: IP67.
- Gain Values: 5 dBi.
- Wind Resistance: 60 m/s.
- Installation Method: Pole-mounting or wall-mounted.
Physical Specifications
- Dimensions: 145 x 145 x 20 mm.
- Weight: 0.73 kg.
- Shell Material: ABS.
- Radiation Plate Material: Aluminum.
- Interface Form: SMA female.
- IP Rating: IP67.
Installation
- Installation Method: Pole-mounting or wall-mounted.
- Diameter of Support Rod: 30-50 mm.
Technical Parameters
- Frequency: 865-868 MHz | 902-928 MHz.
- Protocol: EPC C1G2 | ISO18000-6C.
- Horizontal Angle: 80°.
- Vertical Angle: 70°.
- Polarization: Circular Polarization (right-handed).
- Standing Wave Ratio: ≤1.3.
- Gain Values: 5 dBi.
- Antenna Front-to-Back Ratio: ≥17 dB.
- Characteristic Impedance: 50Ω.
- Maximum Input Power: 20W.
Environmental Specifications
- Operating Limits: -40°C to +60°C, DC grounding.
- Wind Resistance: 60 m/s.
