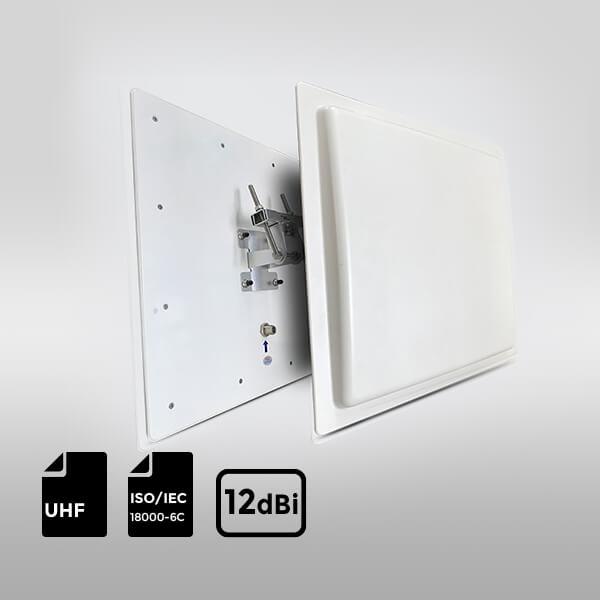

Product Overview:
- The UHF RFID antenna 12dBi features high sensitivity and outstanding reading performance.
- It supports long-distance, high-volume tag reading and writing with precision speed and high security.
- The antenna has an IP67 high protection rating and excellent waterproof performance.
- It is designed for easy installation and is suitable for a wide range of applications, including smart transportation, logistics, warehouse management, event management, production line management, smart retail, national defense security, power asset management, financial management, and medical equipment management.
Features:
- Frequency Band: UHF 860-960 MHz.
- International Standard: ISO/IEC 18000-6C.
- IP Rating: IP67.
- Gain Values: 12 dBi.
- Wind Resistance: 60 m/s.
- Installation Method: Pole-mounting.
Specifications:
Physical Specifications:
- Dimensions: 445 x 445 x 30 mm.
- Weight: 2.66 kg.
- Shell Material: ABS.
- Radiation Plate Material: Aluminum.
- Interface Form: N female.
- IP Rating: IP67.
Installation:
- Installation Method: Pole-mounting.
- Diameter of Support Rod: 30-50 mm.
Technical Parameters:
- Frequency: 865-868 MHz | 902-928 MHz.
- Protocol: EPC C1G2 | ISO18000-6C.
- Horizontal Angle: 40°.
- Vertical Angle: 38°.
- Polarization: Circular Polarization (right-handed).
- Standing Wave Ratio: ≤1.3.
- Gain Values: 12 dBi.
- Antenna Front-to-Back Ratio: ≥17 dB.
- Characteristic Impedance: 50Ω.
- Maximum Input Power: 20W.
Environmental Specifications:
- Operating Limits: -40°C to +60°C, DC grounding.
- Wind Resistance: 60 m/s.
Support:
- Product Datasheet: Available.
- Contact Us: For more information or inquiries.
