Product Overview

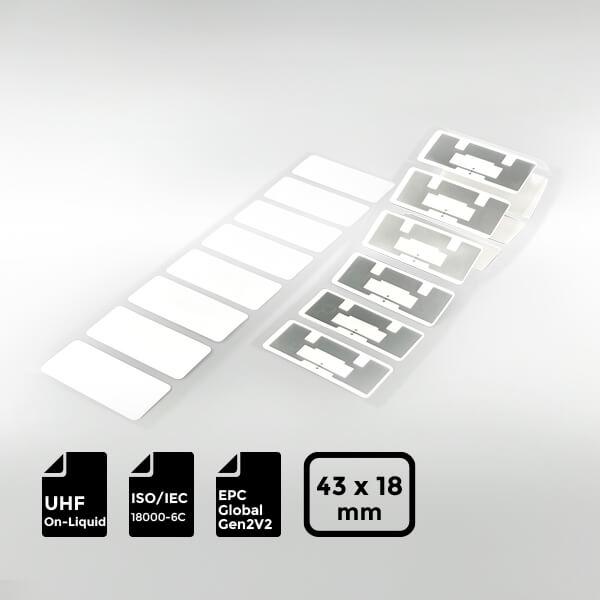

- UHF U8 RFID on-liquid PET labels are a cutting-edge solution for reliable and accurate tracking in challenging environments.
- Designed to maintain optimal performance even when applied directly to containers filled with liquid.
- Utilizes durable and flexible PET material to ensure stability and an extended read range.
Features
- Frequency Band: UHF 860-960 MHz
- Chip Type: U8
- International Standard: ISO 18000-6C, EPC Global Gen2v2
- Certificate: WEEE compliant
- EPC Memory: 128 bits
- Operating Temperature: -20 to 50°C
Specifications
Physical Specifications
- Material: PET
- Label Size: 43×18 mm
- Inlay Size: 40×15 mm
Technical Parameters
- Operating Frequency: 860-960 MHz
- Communication Protocol: ISO/IEC 18000-6C, EPC Global Gen2v2
- Antenna Programming Mode: Aluminum etching (9µm)
- Operating Mode: Passive
- IC ESD Voltage Immunity: 2000V (HBM)
Additional Information
- Operating Environment: -20°C~50°C, 20%~80% RH
- Label Attach Environment: 10°C~40°C, 20%~80% RH
Chip Characteristics
- Chip Manufacturer: Contact Customer Service
- Chip Type: U8
- TID Memory: 96 bits (read-only)
- EPC Memory: 128 bits (read & write)
- Read Sensitivity: -23 dBm
- Write Sensitivity: -18 dBm
- Encoding Speed: 16 bits per millisecond
- Self Adjust: Automated tag performance optimization
- Brand Identifier: Enables product authentication verification
- Write Endurance: 100,000 times
- Data Retention Time: 20 years
- Memory Safeguard: Supported
Packaging
- Packing Format:
- Packed in roll (ID = 76.2 mm, OD ≤ 171 mm)
- Quantity: 2500 ± 2 PCS/Roll
- Operating Precautions:
- Keep away from water and collision.
- DO NOT BEND.
