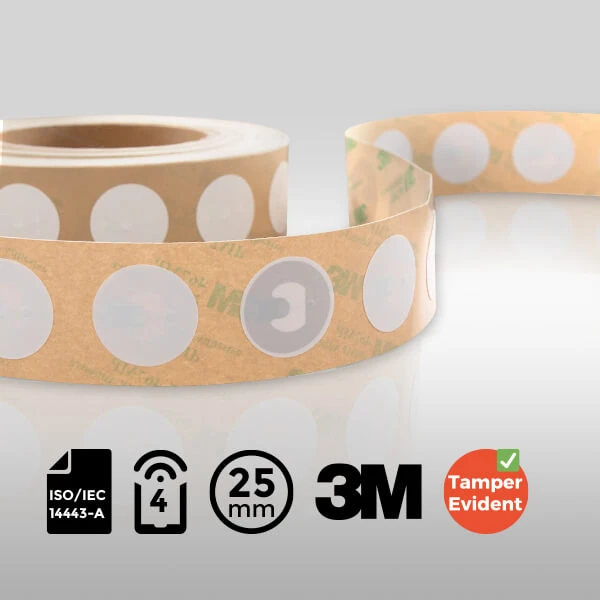

Experience Unmatched Protection with Our Ø25mm Tamper-Evident NFC Label:
- Advanced Chip: Integrated with the NFC TAG 424 DNA chip.
- Durable Adhesive: Backed with a strong 3M adhesive.
- Tamper-Evident Design: Any attempt to remove the label destroys both the label and its antenna.
- Dual-Layered Security: Combines sophisticated chip security features with physical tamper evidence.
- Ideal for Asset Protection: Ensures both technical and physical security for your assets.
Features:
- Frequency Band: HF 13.56 MHz.
- Chip Type: NFC TAG 424 DNA.
- International Standard: ISO/IEC 14443-A, ISO/IEC 7816-4, NFC Forum Type 4.
- User Memory: 416 bytes.
- UID: 7 bytes.
- Certificate: WEEE compliant.
Specifications:
Physical Specifications:
- Material: Frangible PET + 3M467 adhesive.
- Label Size: Diameter 25 mm.
- Antenna Size: Diameter 23 mm.
Technical Parameters:
- Operating Frequency: 13.56 MHz.
- Communication Protocol: ISO/IEC 14443-A, ISO/IEC 7816-4, NFC Forum Type 4.
- Communication Rate: 106 kbit/s, 212 kbit/s, 424 kbit/s, 848 kbit/s.
- Operating Distance: Up to 100 mm.
- Input Capacitance: 50 pF.
- Operating Mode: Passive.
- Antenna Etching Mode: Aluminum etching (10+30 µm).
Additional Information:
Operating Environment:
- Temperature: -40°C to 70°C.
- Humidity: 20% to 90% RH.
Storage Environment:
- Temperature: 18°C to 28°C.
- Humidity: 40% to 60% RH.
Handling Precautions:
- Products marked with black ink dots are defective and should not be used.
- Keep away from water and collision.
- Do not bend.
Chip Characteristics:
- Chip Manufacturer: Contact Customer Service.
- Chip Type: NFC TAG 424 DNA.
- User Memory: 416 bytes.
- UID: 7 bytes.
- Authentication: Standard AES-128 cryptography.
- Advanced Data Protection: SUN message authentication.
- Common Criteria Certification: EAL4 for both hardware and software.
- Originality Signature: ECC-based.
- Anti-collision: Supported.
- Write Endurance: 200,000 cycles.
- Data Retention Time: 50 years.
Packaging:
- Packing Format: In rolls, vacuum-sealed in ESD bags.
- Roll OD: Max. 185 mm.
- Core ID: 3 inches (76.2 ± 0.5 mm).
- Packing Quantity: 1000 pcs/roll, single roll weight 0.34 kg.
Applications:
- Product Counterfeiting Prevention: High security for product authentication.
- Interactive NFC Garment Badge: Future of wearable technology with seamless interaction between clothing and smartphones.
- RFID Card: NFC TAG 424 DNA blank RFID card suitable for most direct thermal or thermal transfer card printers.
Why Choose Us:
- Quality & Value: Over a decade as a leading RFID hardware manufacturer, delivering high-quality products at competitive prices.
- Expertise & Innovation: Our expert team provides advanced and customized RFID solutions.
RFID Readers to Match:
- Frequency Band: HF 13.56 MHz.
- Chip Type: NFC TAG 424 DNA.
- International Standard: ISO/IEC 14443-A, ISO/IEC 7816-4, NFC Forum Type 4.
- User Memory: 416 bytes.
- UID: 7 bytes.
- Certificate: WEEE compliant.
Available Readers:
- Desktop HF ISO 14443-A NFC Reader.
- Fixed NFC Readers (ISO/IEC 14443-A compliant).
