Product Overview

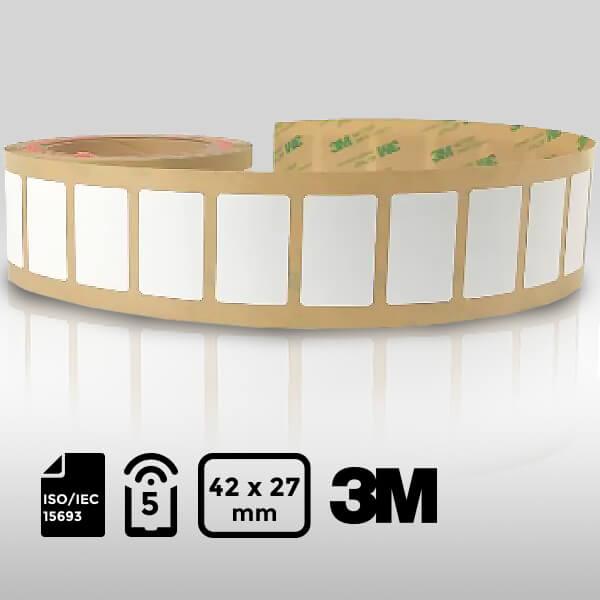

- NFC Label (42x27mm): Designed with the ST25TV02K IC chip from ST Micro.
- Compliance: ISO/IEC 15693 and NFC Forum Tag Type 5 standards.
- Frequency Band: 13.56 MHz.
- Application: Suitable for various NFC applications, including asset tracking, authentication, and access control.
Features
- Frequency Band: 13.56 MHz
- Chip Type: ST25TV02K
- International Standard: ISO/IEC 15693, NFC Type 5
- UID: 64 bits
- User Memory: 2-Kbits
- Reading Rate: 53 Kbit/s
Specifications
Physical Specifications
- Label Size: 42×27 mm
- Antenna Size: 37×22 mm
- Thickness: 0.25 mm / 0.010 in
- Core Diameter: 3 inches
- Outer Diameter: 8 inches max
- Labels per Roll: 1000-5000
RF Specifications
- IC Type: ST25TV02K
- UID: 64 bits
- User Memory: 2-Kbits
- Reading Rate: 53 Kbit/s
- Capacitance: 23 pF
- Support Protocols: ISO/IEC 15693, NFC Type 5
- Operating Frequency: 13.56 MHz
- Data Retention: 60 years
- EAS Capability: Supported
Environmental Specifications
- Operating Limits:
- Temperature: -40° to +70°C
- Humidity: 20% to 90% RH
- Storage Limits:
- Temperature: -25° to +90°C
- Humidity: 20% to 90% RH
Material Selection
- White PET with 3M467 Adhesive: ✔️
- Coated Paper: ✔️
- Synthetic Paper: ✔️
- Anti-Metal: ✔️
Additional Products
- RFID Card ST25TV02K:
- Blank or custom-printed RFID card with RFID SLIX.
- Operates at 13.56 MHz, supporting ISO/IEC 15693 and NFC Forum Tag Type 5.
- Dimensions: 86×54×0.88 mm.
