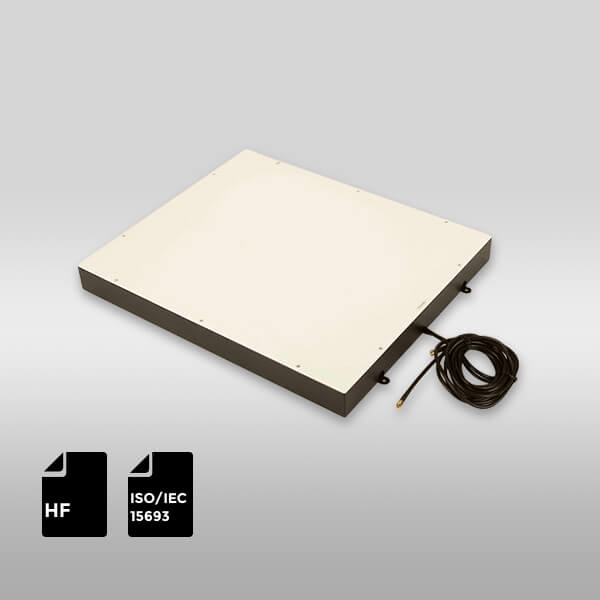

Smart Tray HF RFID Antenna ISO 15693

Product Overview

• The Smart Tray RFID antenna is a high-performance antenna designed for quick checkout in restaurants.
• Works in conjunction with RFID readers to meet the checkout needs of fast-food restaurants.

Features

• Frequency Band: HF 13.56 MHz.
• Protocol: ISO 15693.
• Radio Frequency Interface: SMA x 2.

Physical Specifications

• Dimensions:
  • Medium: 505L x 360W x 50H mm.
  • Large: 555L x 420W x 49H mm.
• Shell Material: ABS & Sheet Metal.
• Cable Length: 2.5 meters.
• Radio Frequency Interface: SMA x 2.

Performance

• Operating Frequency: 13.56 MHz.
• Protocol: ISO 15693.
• Antenna Impedance: 50Ω.
• Maximum Supporting Power: 6W.
• Read Range:
  • Medium Size:
    • Medium Power: 35 cm.
    • High Power: 45 cm.
  • Large Size:
    • Medium Power: 40 cm.
    • High Power: 50 cm.

RFID Reader Compatibility

• Compatible with ISO 15693 compliant fixed RFID readers.
• Features exceptional sensitivity for reading and writing.
• Rapid anti-collision processing algorithms.
• Integrated communication interfaces: Ethernet, USB, RS232, and RS485.
• Suitable for applications requiring high read/write performance, such as:
  • Jewelry management.
  • Chip management.
  • Production automation.
  • Access control.

RFID Tags Compatibility

• Compatible with ISO 15693 compliant tags.
• Examples include:
  • RFID SLIX.
  • ABS and Nylon RFID Cable Tie Tag.
  • RFID Silicone Wristband.
  • Heat Press Interactive NFC+UHF Garment Badge (EM4425).

Additional Information

• Operating Environment:
  • Label attachment: 10°C to 40°C, 20% to 80% RH.
  • After label attached: -20°C to 50°C, 20% to 80% RH.
  • Storage environment: 18°C to 28°C, 40% to 60% RH.
• Handling Precautions:
  1. Do not bend.
  2. Keep away from water and collision.
  3. Inlays with black-dot marks are defective and should not be used.

Packaging

• Packing Format: Packed in roll, vacuumed packing in ESD bag.
• Roll OD: Maximum 8.27 inches (210 mm).
• Core ID: 3 inches (76.2 mm).
• Packing Quantity: 2000 pieces per roll (1.015 kg per roll).
