Product Overview

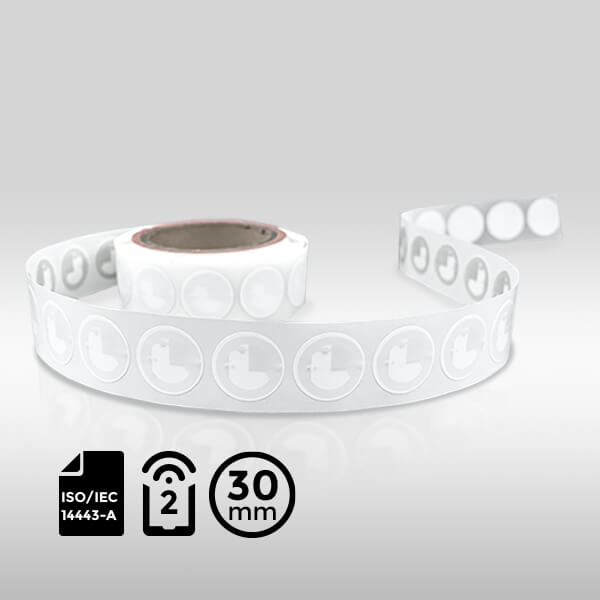

- Discover the pinnacle of streamlined security with our Round RFID Label.
- Sized at a precise 30mm diameter, powered by the RFID Ultralight-C chip.
- Operates within the ISO14443A standard, ensuring broad compatibility and high-speed transactions.
- Features advanced 3DES encryption for robust data integrity and protection against unauthorized access.
Features
- Frequency Band: 13.56 MHz
- Chip Type: RFID Ultralight-C
- International Standard: ISO/IEC 14443-A
- UID: 7 Bytes
- User Memory: 1152 bits
- Reading Rate: 106 Kbit/s
Specifications
Physical Specifications
- Label Dimensions: ⌀30 mm
- Antenna Dimensions: ⌀27 mm
- Thickness: 0.25 mm / 0.010 in
- Core Diameter: 3 inches
- Outer Diameter: 8 inches max
- Labels per Roll: 500-5000
Material Selection
- PET + 3M Adhesives: ✔️
- Coated Paper: ✔️
- PP Synthetic Paper: ✔️
- On-Metal: ✔️
RF Specifications
- IC Type: RFID Ultralight-C
- UID: 7 Bytes
- User Memory: 1152 bits
- Reading Rate: 106 Kbit/s
- Capacitance: 16/50 pF
- Support Protocols: ISO/IEC 14443-A
- Operating Frequency: 13.56 MHz
- Data Retention: 10 years
- Write Endurance: 100,000 cycles
- 3DES Authentication: Yes
Environmental Specifications
- Operating Limits:
- Temperature: -40° to +70°C
- Humidity: 20% to 90% RH
- Storage Limits:
- Temperature: -25° to +90°C
- Humidity: 20% to 90% RH
Applications
- Public Transportation
- Loyalty Applications
- Event Ticketing
- Smart City
Why Choose Us?
- Quality & Value:
- Leading RFID hardware manufacturer for over a decade.
- Unparalleled quality at competitive prices.
- Advanced production facilities and stringent quality control.
- Expertise & Innovation:
- Expert team driving innovation in RFID technology.
- Custom solutions and cutting-edge products tailored to your needs.
- Efficient & Reliable:
- Reliable global shipping.
- In-stock items delivered in North America, Europe, and the Asia Pacific.
Additional Information
- RFID Ultralight-C RFID Cards:
- Made with photo-quality standard PVC/PET in the size of CR80 (86×54×0.88 mm).
- Suitable for use with most direct thermal or thermal transfer card printers.
