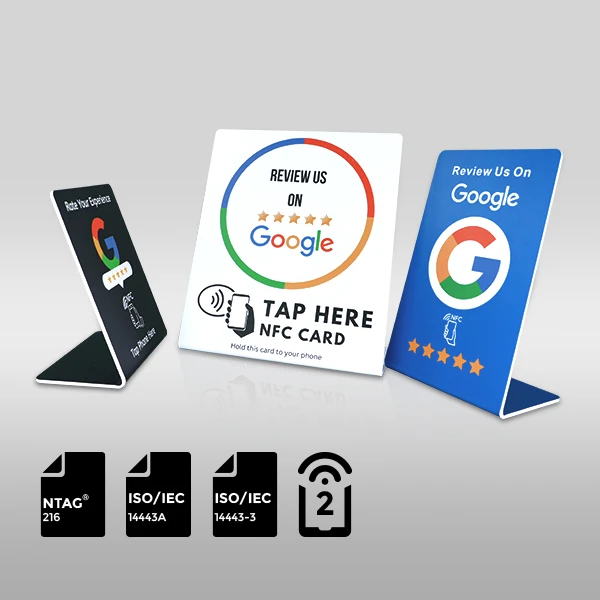

Product Overview: NFC TAG 216 NFC Review Card
- Category: 13.56MHz HF, Custom RFID Tag, NFC Review Cards, NFC TAG 216
- Price Range: Available upon request
- Model Numbers: GRS120140, GRS76128, GRS85100
- Quantity Options: Customizable based on order
Key Features
- Frequency Band: HF 13.56 MHz
- Chip Type: NFC TAG 216
- International Standard: ISO/IEC 14443A, ISO/IEC 14443-3, NFC Forum Type 2
- EEPROM Memory: 924 bytes
- User Read/Write Area: 888 bytes
- Operating Temperature: -10°C to 60°C
Physical Specifications
- Material: Durable PVC

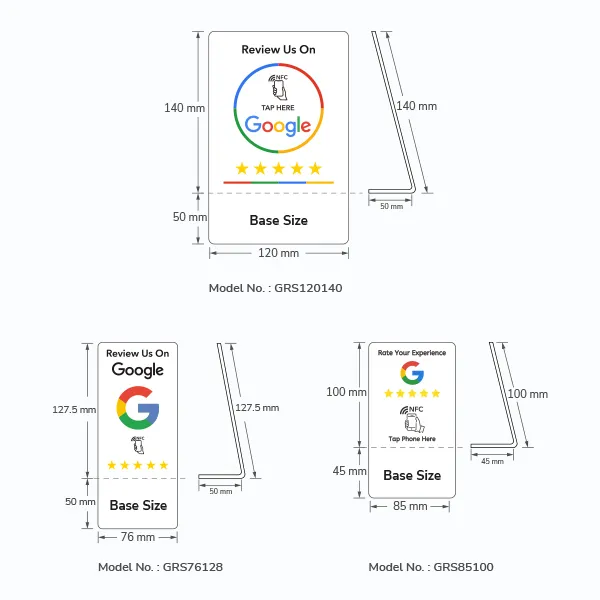

- Full Size Options:
- 120×190 mm (GRS120140)
- 76×177.5 mm (GRS76128)
- 85×145 mm (GRS85100)
- Panel Size Options:
- 120×140 mm (GRS120140)
- 76×127.5 mm (GRS76128)
- 85×100 mm (GRS85100)
- Thickness: 1.8 mm
- Antenna Size: Diameter 60 mm
- Antenna Material: Copper coil
- Weight: 6.5 kg/100 pcs (GRS120140), 4 kg/100 pcs (GRS76128), 3.5 kg/100 pcs (GRS85100)
- Shape Options: Round, Square
- Printing Methods: 4-color printing
Additional Information
- Operating Environment: -10°C to 60°C
- Applications: Ideal for restaurants, beauty salons, gyms, convenience stores, and Contact Customer Service places for Google user reviews.
Technical Parameters
- Operating Frequency: 13.56 MHz
- Communication Protocols: ISO/IEC 14443A, ISO/IEC 14443-3, NFC Forum Type 2
- Communication Rate: 106 kbit/s
- Operating Distance: Up to 100 mm
- Input Capacitance: 50 pF
Chip Characteristics
- Chip Manufacturer: Contact Customer Service Semiconductors
- Chip Family: NFC TAG 216
- EEPROM: 924 bytes
- Unique Serial Number: 7-byte UID
- Initialized Capability Container: 4 bytes
- User Read/Write Area: 888 bytes
- Memory Access Protection: 32-bit password
- Originality Signature: ECC-based
- Write Endurance: 100,000 cycles
- Data Retention: 10 years
- Memory Organization: 924 bytes organized in 231 pages with 4 bytes per page
- Anticollision Support: Yes
