Product Overview:

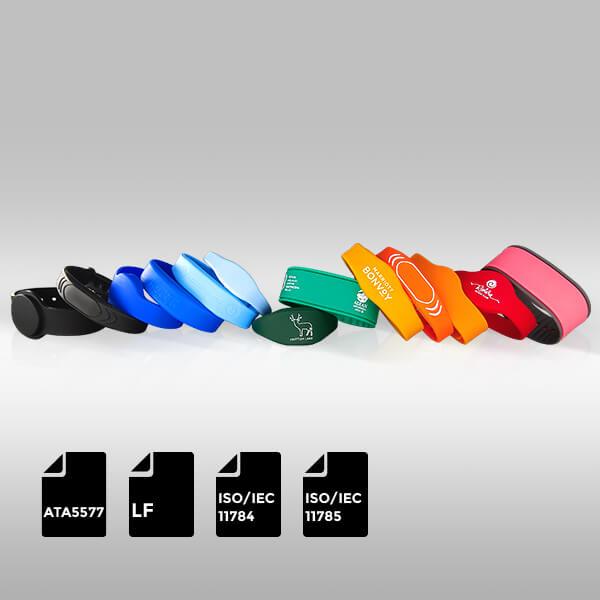

- The silicone wristband with the T5577 chip is a watch-style wristband.
- It is elastic, easy to wear, easy to use, waterproof, moisture-proof, shockproof, and high-temperature resistant.
- Suitable for applications such as access control systems, event management, and membership management.
Features:
- Frequency Band: LF 100-150 KHz.
- Chip Type: T5577.
- International Standard: ISO 11784/11785.
- EEPROM: 330 bits (10 blocks, 33 bits each).
- Read/Write Availability: Read-only.
- Operating Environment: -30°C to +220°C.
Specifications:
Physical Specifications:
- Material: Silicone.
- Characteristics: Waterproof, high-temperature resistant.
- Specification:
- Adjustable Models: SW05, SW06, SW07, SW9C, SW10-1C, SW10-2C, SW11-1C, SW11-2C.
- Non-Adjustable Models: SW01/02, SW03, SW04, SW08.
Chip Characteristics:
- Chip Manufacturer: Atmel Corporation.
- Chip Type: T5577.
- Read/Write Availability: Read/Write.
- EEPROM: 330-bit (10 blocks, 33 bits each).
- On-chip Resonant Capacitor (Mask Option): 75 pF.
Technical Parameters:
- Operating Frequency: 100-150 KHz.
- Communication Protocol: ISO/IEC 11784/785.
- Read Sensitivity: -40 dBm to -20 dBm.
- Reading Distance: 5-10 cm.
Additional Information:
- Operating Environment: -30°C to +220°C.
- Applications: Access control systems, event management, membership management, etc.
Support:
- Product Datasheet:
- Silicone Wristband Brochure: Available.
- Explore More Wristbands: RFID Silicone Wristbands.
- Contact Us: For more information or inquiries.
