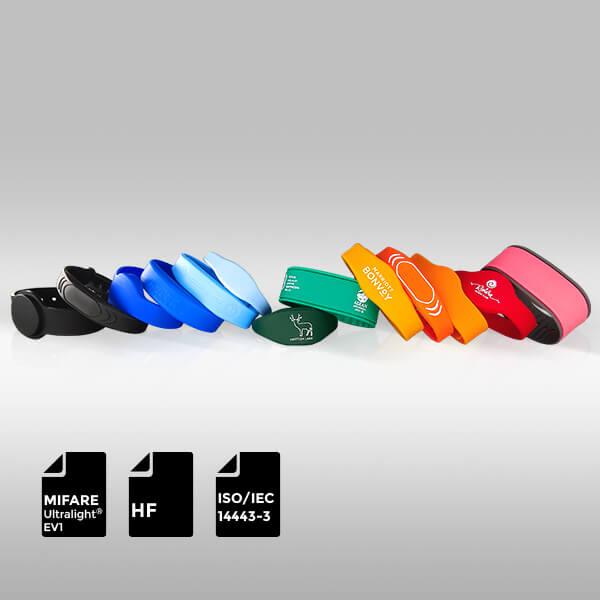

RFID Ultralight EV1 RFID Silicone Wristband:
- Intelligent and Secure: Combines intelligence, security, convenience, and reliability.
- Contactless Data Transmission: Supports anti-collision and multi-layer security features.
- Versatile Applications: Ideal for public transportation, event ticketing, membership, and more.
Features:
- Frequency Band: HF 13.56 MHz.
- Chip Type: Contact Customer Service RFID Ultralight EV1.
- International Standard: ISO/IEC 14443A.
- User Memory: 48 bytes.
- Compliance: WEEE directive.
- Operating Environment: -30°C to 220°C.
Specifications:
Physical Specifications:
- Material: Silicone.
- Characteristics: Waterproof, high-temperature resistant.
- Specifications:
- Adjustable: SW05, SW06, SW07, SW9C, SW10-1C, SW10-2C, SW11-1C, SW11-2C.
- Non-adjustable: SW01/02, SW03, SW04, SW08.
Chip Characteristics:
- Chip Manufacturer: Contact Customer Service.
- Chip Type: RFID Ultralight EV1.
- Write Endurance: 100,000 cycles.
- Data Retention: 10 years.
- User Memory: 48 bytes.
- Anti-collision: Supported.
- OTP Area: 32 bits.
- Counter: 3 × 24 bits.
- Access Protection: 32-bit password + password acknowledge.
Technical Parameters:
- Operating Frequency: 13.56 MHz.
- Communication Rate: 106 kbit/s.
- Communication Protocol: ISO/IEC 14443A.
- ECC: Supports originality signature.
- Operating Distance: Up to 100 mm.
- Typical Ticketing Transaction: < 35 ms.
- Fast Counter Transaction: < 10 ms.
Additional Information:
- Operating Environment: -30°C to +220°C.
- Applications: Public transportation, event ticketing, membership.
Why Choose Us:
- Quality & Value: Over a decade as a leading RFID hardware manufacturer, delivering high-quality products at competitive prices.
- Expertise & Innovation: Our expert team provides advanced and customized RFID solutions.
RFID Readers to Match:
- Frequency Band: HF 13.56 MHz.
- Chip Type: Contact Customer Service RFID Ultralight EV1.
- International Standard: ISO/IEC 14443A.
- User Memory: 48 bytes.
- Compliance: WEEE directive.
- Operating Environment: -30°C to 220°C.
Available Readers:
- Desktop HF ISO 14443A RFID Reader.
- Fixed RFID Readers (ISO/IEC 14443A compliant).
