RFID Label for Lab Specimen Tracking | 56x18mm RFID Slix

Product Overview

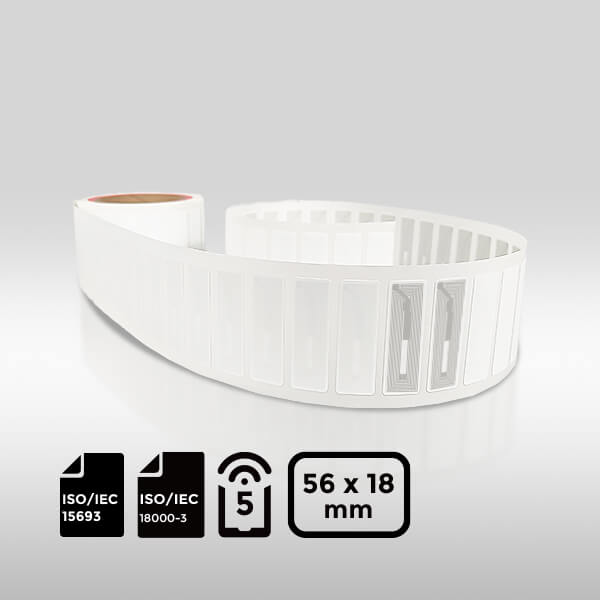

• Enhance specimen tracking in your lab with our 56x18mm ISO15693 NFC Label.
• Engineered with SLIX ICs.
• Utilizes Polyester facing material for superior chemical and thermal resistance.
• Fortified with acrylic adhesive for optimal adhesion.
• Meets the rigorous demands of laboratory environments.

Features

• Frequency Band: HF 13.56 MHz
• Chip Type: RFID SLIX
• International Standard: ISO/IEC 15693, ISO/IEC 18000-3, NFC Forum Tag Type 5
• User Memory: 896 bits
• Read Range: Up to 1.5 meters
• Certificate: WEEE compliant

Specifications

Physical Specifications

• Material: Nylon + Acrylic Adhesives
• Size: 56×18 mm
• Antenna Size: 52×15 mm

Technical Parameters

• Operating Frequency: HF 13.56 MHz
• Communication Protocol: ISO/IEC 15693, ISO/IEC 18000-3, NFC Forum Tag Type 5
• Read Range: Up to 1.5 meters
• Capacitance: 23.5 pF
• Operating Mode: Passive

Chip Characteristics

• Chip Manufacturer: Contact Customer Service
• Chip Type: RFID SLIX
• Data Retention: 50 years
• User Memory: 896 bits
• TID Memory: 64 bits
• Write Endurance: 100,000 cycles
• Reading Rate: 53 Kbit/s
• Anti-collision Speed: Up to 60 units/s
• Lock Mechanism: EAS AFI DSFID
• Protection Type: 32-bit password

Additional Information

• Operating Environment:
  • Label Attach: 10°C~40°C, 20%~80% RH
  • After Label Attached: -20°C~50°C, 20%~80% RH
• Storage Environment:
  • Temperature: 18°C~28°C
  • Humidity: 40%~60% RH
• Handling Precautions:
  1. Do not bend.
  2. Keep away from water and collision.

Packaging

• Packing Format: Packed in roll, vacuumed packing in ESD bag
• Roll OD: Max. 203.2 mm
• Core ID: 3 inches (76.2 mm)
• Packing Quantity: 1000 pcs/roll (0.495 kg/roll)

Differences Between RFID SLIX Variants

• RFID SLIX Family:
  • RFID SLIX:
    • User Memory: 896 bits
    • EEPROM: 1024 bits (32 blocks of 4 bytes each)
    • Does not support EAS selection and memory protection.
  • RFID SLIX 2:
    • User Memory: 2528 bits
    • EEPROM: 2560 bits (80 blocks of 4 bytes each)
    • Supports EAS selection, Label Destroy, and Privacy Mode.
  • RFID SLIX-L:
    • User Memory: 256 bits
    • EEPROM: 512 bits (16 blocks of 4 bytes each)
    • Supports EAS selection, Label Destroy, and Privacy Mode.
  • RFID SLIX-S:
    • User Memory: 1280 bits
    • EEPROM: 2048 bits (2 KB, 64 blocks of 4 bytes each)
    • Supports EAS selection, Label Destroy, and Privacy Mode.

Why Choose Us?

• Quality & Value:
  • Leading RFID hardware manufacturer for over a decade.
  • Unparalleled quality at competitive prices.
  • Advanced production facilities and stringent quality control.
• Expertise & Innovation:
  • Expert team driving innovation in RFID technology.
  • Custom solutions and cutting-edge products tailored to your needs.
• Efficient & Reliable:
  • Reliable global shipping.
  • In-stock items delivered in North America, Europe, and the Asia Pacific.

RFID Readers to Match ISO 15693

• Desktop HF ISO 15693 RFID Reader AZ-RL173:
  • Fixed RFID readers supporting ISO/IEC 15693.
  • Frequency Band: HF 13.56 MHz.
  • Chip Type: RFID SLIX.
  • Compliance: ISO/IEC 15693, ISO/IEC 18000-3, NFC Forum Tag Type 5.
  • User Memory: 896 bits.
  • Read Range: Up to 1.5 meters.
  • Certificate: WEEE compliant.
