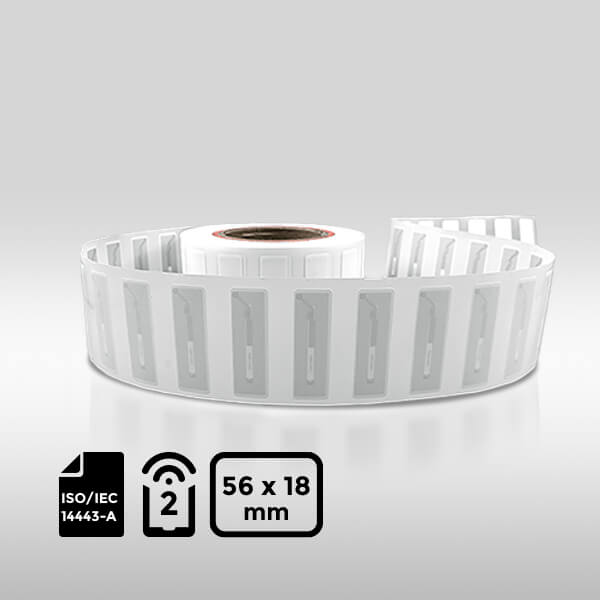

RFID Label 56x18mm RFID Ultralight EV1 50pf | ISO14443A

Product Overview

• RFID Label (56x18mm): Features the RFID Ultralight EV1 chip.
• Precise Capacitance: 50 pF for optimal read range and performance.
• Compliance: ISO/IEC 14443-A standard.
• Security Mechanisms: Password protection and originality signature.
• Ideal for: Applications requiring high security and reliable performance.

Features

• Frequency Band: 13.56 MHz
• Chip Type: RFID Ultralight EV1
• International Standard: ISO/IEC 14443-A
• EEPROM: 640 bits
• User Memory: 384 bytes
• Certificate: WEEE compliant

Specifications

Physical Specifications

• Material: 75# PP synthetic paper
• Label Size: 56×18 mm
• Antenna Size: 52.4×15.4 mm

Technical Parameters

• Operating Frequency: 13.56 MHz
• Communication Protocol: ISO/IEC 14443-A
• Serial Number (UID): 7 bytes
• Operating Distance: Up to 100 mm
• Fast Counter Transaction: < 10 ms
• Data Transfer: 106 kbit/s
• Typical Ticketing Transaction: < 35 ms
• Antenna Etching Mode: Aluminum etching (30 µm) + PET (38 µm) + AL bridge (10 µm)

Additional Information

• Operating Environment:
  • Label Attach: +10°C to +40°C, 20% to 80% RH
  • After Label Attached: -20°C to +50°C, 20% to 80% RH
• Storage Environment:
  • Temperature: 18°C to 28°C
  • Humidity: 40% to 60% RH
• Handling Precautions:
  1. Do not bend.
  2. Keep away from water and collision.
  3. Labels with black-dot marks are defective; do not use.

Chip Characteristics

• Chip Manufacturer: Contact Customer Service
• Chip Type: RFID Ultralight EV1
• User Memory: 384 bits
• EEPROM: 640 bits
• OTP Area: 32 bits
• Password Protection: 32 bits
• Write Endurance: 100,000 times
• Data Retention Time: 10 years

Packaging

• Packing Format: In roll, vacuumed packing in ESD bag
• Roll OD: Max. 175 mm
• Core ID: 3 inches (76.20±0.50 mm)
• Packing Quantity: 1000 pcs/roll, single roll weight 0.4347 kg
