RFID Label 56x18mm RFID Ultralight C | ISO14443A

Product Overview

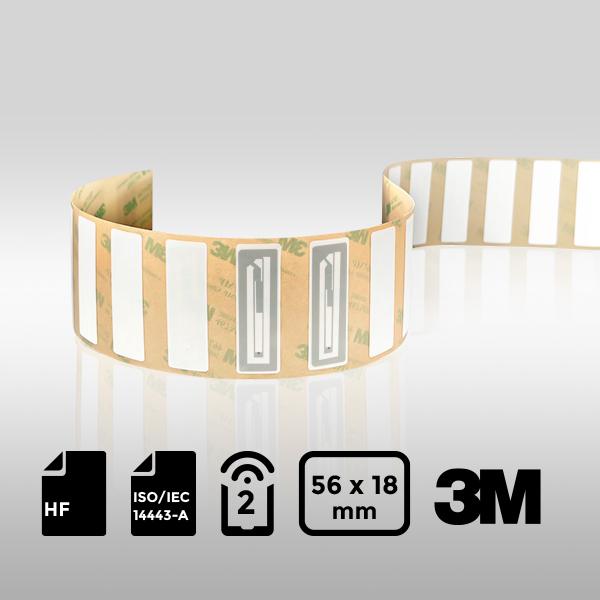

• 56x18mm RFID Label: Features the RFID Ultralight-C chip.
• Security and Convenience: Utilizes 3DES cryptography and complies with ISO/IEC 14443-A and NFC Type-2 standards.
• Ideal for: Secure transit tickets, event passes, and device authentication.

Features

• Frequency Band: 13.56 MHz
• Chip Type: RFID Ultralight-C
• International Standard: ISO/IEC 14443-A, NFC Type-2
• User Memory: 1152 bits
• UID: 7 bits
• Reading Range: Up to 10 cm

Specifications

Physical Specifications

• Material: PET + 3M adhesives
• Label Size: 56×18 mm
• Antenna Size: 52×15.5 mm

Technical Parameters

• Operating Frequency: HF 13.56 MHz
• Communication Protocol: ISO/IEC 14443-A, NFC Type-2
• Operating Mode: Passive
• Reading Range: Up to 10 cm

Chip Characteristics

• Chip Manufacturer: Contact Customer Service
• Chip Type: RFID Ultralight-C
• Total Memory: 1536 bits
• UID Memory: 7 bits
• User Memory: 1152 bits
• Data Transfer: 106 kbit/s
• High Data Integrity: 16-bit CRC
• Authentication: 3DES
• Anti-Collision Function: Yes
• Fast Counter Transaction: <10 ms
• Typical Ticketing Transaction: <35 ms
• One-Way Counter: 16-bit
• One-Time Programmable: 32-bit
• Write Endurance: 100,000 times
• Data Retention: 10 years
• Input Capacitance: 16/50 pF

Additional Information

• Operating Environment:
  • Label Attach: 10°C~40°C, 20%~80% RH
  • After Label Attach: -20°C~50°C, 20%~80% RH
• Storage Environment:
  • Temperature: 18°C~28°C
  • Humidity: 40%~60% RH
• Handling Precautions:
  1. Do not bend.
  2. Keep away from water and collision.
  3. Labels with black-dot marks are defective; do not use.

Packaging

• Packing Format: Packed in roll, vacuumed packing in ESD bag
• Roll OD: Max. 7.87 inches (200 mm)
• Core ID: 3 inches (76.2 mm ± 0.50 mm)
• Packing Quantity: 1000 pcs/roll, single roll weight 0.215 kg
