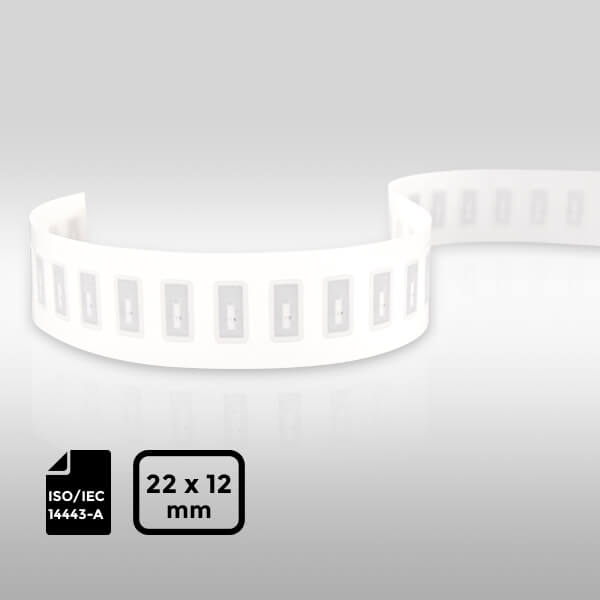

RFID Label 22x12mm RFID Ultralight EV1 | ISO14443A

Product Overview

• 22x12mm RFID Ultralight EV1 RFID Labels: Deliver stable read distances and superior performance.
• Compliance: ISO/IEC 14443-A standard.
• Ideal for: Event ticketing and Contact Customer Service applications requiring reliable RFID solutions.

Features

• Frequency Band: HF 13.56 MHz
• Chip Type: RFID Ultralight EV1
• International Standard: ISO/IEC 14443-A
• EEPROM: 640 bits
• User Memory: 384 bits
• Certificate: WEEE compliant

Specifications

Physical Specifications

• Material: Coated Paper
• Label Size: 22×12 mm
• Antenna Size: 18×8 mm

Technical Parameters

• Operating Frequency: 13.56 MHz
• Communication Protocol: ISO/IEC 14443-A
• Serial Number (UID): 7 bytes
• Operating Distance: Up to 100 mm
• Fast Counter Transaction: < 10 ms
• Data Transfer: 7 bytes
• Data Transfer Rate: 106 kbit/s
• Typical Ticketing Transaction: < 35 ms
• Antenna Etching Mode: Aluminum etching (10+38µm)
• IC ESD Voltage Immunity: 2000V (HBM)

Packaging

• Packing Format: In roll, vacuumed packing in ESD bag
• Roll OD: Max. 235 mm
• Core ID: 3 inches (76.20±0.50 mm)
• Packing Quantity: 1000 pcs/roll, single roll weight 0.232 kg

Chip Characteristics

• Chip Manufacturer: Contact Customer Service
• Chip Type: RFID Ultralight EV1
• User Memory: 384 bits
• EEPROM: 640 bits
• OTP Area: 32 bits
• Password Protection: 32 bits
• Write Endurance: 100,000 times
• Data Retention Time: 10 years

Additional Information

• Operating Environment: -40°C~70°C, 20%~90% RH
• Storage Environment: 18°C~28°C, 40%~60% RH
• Applications: Event ticketing, etc.
• Handling Precautions:
  1. Products marked with black ink dots are defective; do not use.
  2. Keep away from water and collision.
  3. Do not bend.
