RFID Dry Inlay ⌀22mm RFID mifare DESfire 2K EV3 | ISO14443-A NFC Type 4

RFID Dry Inlay ⌀22mm RFID DES 2K EV3 | ISO14443-A NFC Type 4

Professional RFID NFC manufacturing service:

– MOQ: 1000pcs

– OEM/ODM service offered

– Accept customization (specifications, color, design, etc.)

– Lead Time: 7~14 Working days

According to your personalized Ebike designs, or our original designs. Fully customized design, fabric, and pole material, color, size, weight, printed logo, and packaging.

Categories: HF Tag, NXP Mifare Desfire

Description

Product Overview

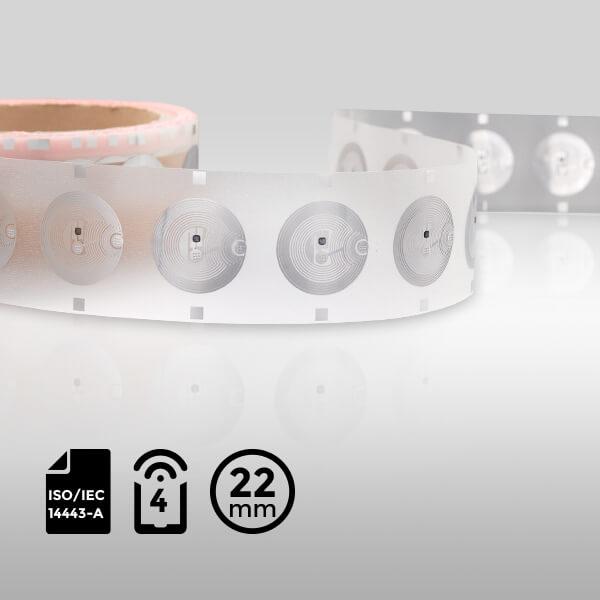

Unlock next-level security and efficiency with our versatile RFID Dry Inlay (⌀22mm) featuring RFID DES 2k EV3 technology.
Compliant with ISO/IEC 14443-A and NFC Type 4 standards.
Offers rapid data transfer and robust encryption in a compact, flexible form factor.
A highly customizable and durable solution with cost-effective advaes.

Features

Frequency Band: 13.56 MHz.
Chip Type: RFID DES EV3 2K.
International Standard: ISO/IEC 14443-A | NFC Type 4.
UID: 7 Bytes.
EEPROM: 2 KB.
Data Transfer Rate: Up to 848 Kbit/s.

Physical Specifications

Antenna Dimensions: ⌀22mm.
Thickness: 0.25mm (0.010 in).
Core Diameter: 3 inches.
Outer Diameter: 8 inches.
Labels per Roll: 100-2000.
Material Selection:
- PET + 3M Adhesives.
- Coated Paper.
- PP Synthetic Paper.
- On-Metal PET.

RF Specifications

IC Type: RFID DES 2k EV3.
UID: 7 Bytes UID or 4 Bytes RID.
EEPROM: 2 KB.
Data Transfer Rate: Up to 848 Kbit/s.
Capacitance: 70 pF.
Supported Protocols: ISO/IEC 14443-A | NFC Type 4.
Operating Frequency: 13.56 MHz.
Data Retention: 25 years.
Write Endurance: 1,000,000 cycles.
Anti-Collision Function: Yes.
Crypto Algorithms Supported: DES, 2K3DES, 3K3DES, AES128.
SUN Compatibility: Compatible with DNA.

Environmental Specifications

Operating Limits:
- Temperature: -40°C to +70°C.
- Humidity: 20% to 90% RH.
Storage Limits:
- Temperature: -25°C to +90°C.
- Humidity: 20% to 90% RH.

Applications

Public transportation.
Electronic toll collection.
Access management.
Smart City initiatives.
Closed-loop e-payment.
Loyalty programs.

Additional Information

Product Datasheet: RFID DES EV3 2K Datasheet.
RFID Card: RFID DES 4k EV3 RFID cards available in photo-quality standard PVC/PET (CR80 size), suitable for use with ID card printers.
