Product Overview

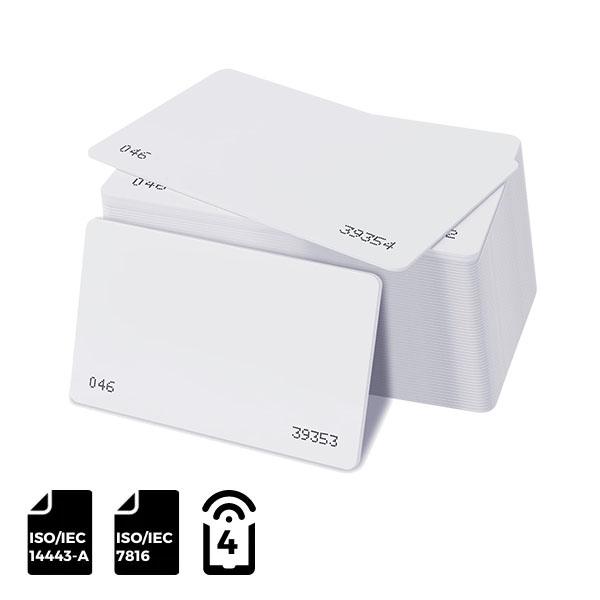

- Product Name: RFID DES 2K EV3 RFID Card
- Application: Ideal for access control, public transport, and Contact Customer Service contactless smart card applications.
- Security Features: Equipped with 2KB EEPROM memory and AES encryption to ensure data integrity and protection against unauthorized access.
- Enhanced Security: EV3 version supports mutual authentication for advanced security measures.
- Compatibility: Compliant with ISO/IEC 14443-A and NFC Type 4 standards for broad system compatibility.
Frequency Band
- Operating Frequency: 13.56 MHz
Chip Type
- IC Type: RFID DES 2K EV3
International Standards
- Compliance: ISO/IEC 14443-A | NFC Type 4
EEPROM and UID
- Memory Capacity: 2 kB EEPROM
- Unique Identifier: 7 Bytes UID or 4 Bytes RID
Data Transfer
- Transfer Rate: Up to 848 Kbit/s
Physical Specifications
- Card Dimensions: 86×54 mm
- Card Thickness: Approximately 0.88 mm
- Material Options:
- Black Core PVC
- White Core PVC
- White Core PET (WEEE Directive compliant)
- White Core ABS (WEEE Directive compliant)
- Wooden (WEEE Directive compliant)
Self-Printing Compatibility
- Standard Size: CR80 blank RFID card (3.375″ x 2.125″, 85.6 mm x 54 mm)
- Printer Compatibility: Compatible with most direct-to-card and retransfer ID card printers.
Environmental Specifications
- Operating Limits: -40 to +100°C, 20% to 90% RH
- Storage Limits: -25° to +90°C, 20% to 90% RH
RF Specifications
- IC Type: RFID DES 2K EV3
- UID: 7 Bytes UID or 4 Bytes RID
- EEPROM: 2 kB
- Data Transfer Rate: Up to 848 Kbit/s
- Capacitance: 70 pF
- Supported Protocols: ISO/IEC 14443-A | NFC Type 4
- Operating Frequency: 13.56 MHz
- Data Retention: 25 years
- Write Endurance: 1,000,000 cycles
- Anti-Collision Function: Yes
- Crypto Algorithms Supported: DES/2K3DES/3K3DES/AES128
Customization Options
- Pre-Printing
- Barcode Printing
- Embossing
- Holograms
- Signature Panels
- UV Printing
- Hot Stamping
- Punch Holes
