Product Overview

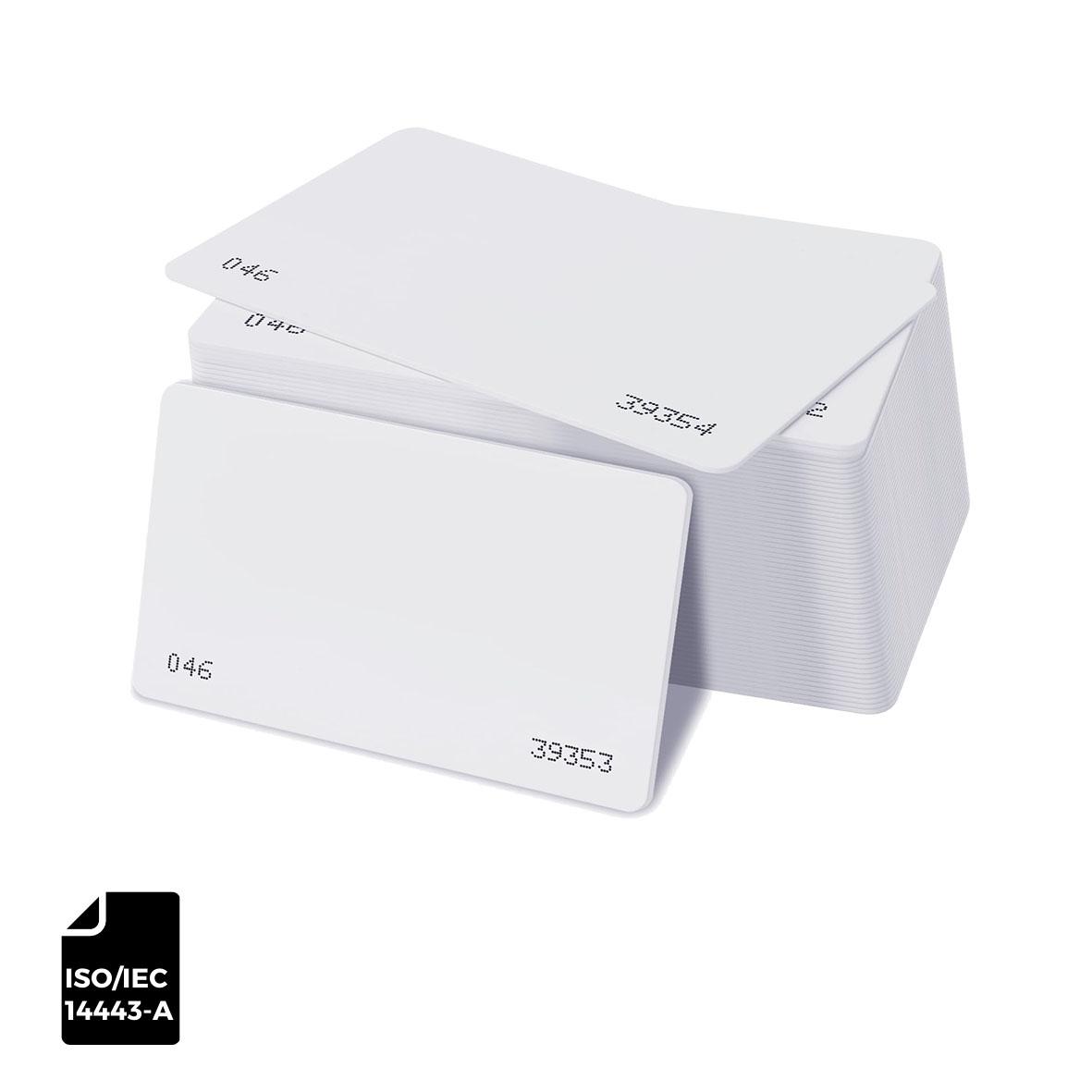

- Product Name: RFID Ultralight C Blank RFID Card
- Compliance: Fully compliant with the ISO/IEC 14443-A standard.
- Material and Size: Made from photo-quality standard PVC/PET, available in CR80 size (85.6 mm x 54 mm), suitable for most direct thermal or thermal transfer card printers.
Frequency Band
- Operating Frequency: 13.56 MHz
Chip Type
- IC Type: RFID Ultralight-C
International Standard
- Standard Compliance: ISO/IEC 14443-A
UID and Memory
- Unique Identifier: 7 Bytes UID
- User Memory: 1152 Bits
Data Transfer
- Reading Rate: 106 Kbit/s
Physical Specifications
- Card Dimensions: 86×54 mm
- Card Thickness: Available in 0.63 mm, 0.88 mm, and 1.3 mm
- Material Options:
- Black Core PVC
- White Core PVC
- White Core PET (WEEE Directive compliant)
- White Core ABS (WEEE Directive compliant)
- Wooden (WEEE Directive compliant)
Self-Printing Compatibility
- Standard Size: CR80 blank RFID card (3.375″ x 2.125″, 85.6 mm x 54 mm)
- Printer Compatibility: Compatible with most direct-to-card and retransfer ID card printers.
Environmental Specifications
- Operating Limits: -40 to +100°C, 20% to 90% RH
- Storage Limits: -25° to +90°C, 20% to 90% RH
RF Specifications
- IC Type: RFID Ultralight-C
- UID: 7 Bytes
- User Memory: 1152 Bits
- Reading Rate: 106 Kbit/s
- Capacitance: 16/50 pF
- Supported Protocols: ISO/IEC 14443-A
- Operating Frequency: 13.56 MHz
- Data Retention: 10 years
- Write Endurance: 100,000 cycles
- 3DES Authentication: Yes
Customization Options
- Pre-Printing
- Barcode Printing
- Embossing
- Holograms
- Signature Panels
- UV Printing
- Hot Stamping
- Punch Holes
