Product Overview

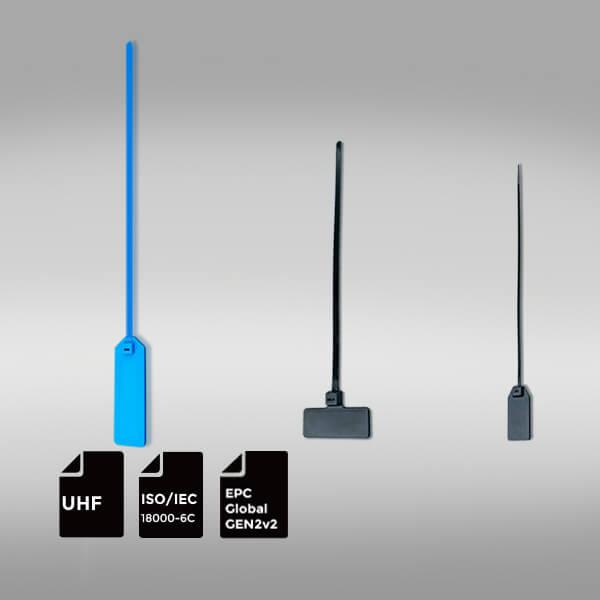

- Product Type: RFID cable ties with built-in RFID tags.
- Application: Ideal for managing corporate assets, industrial equipment, retail merchandise, and more.
- Functionality: Embed RFID chips inside cable ties to detect and transmit data to a system for information control.
Frequency Band
- Operating Frequency: UHF 860-960 MHz.
Chip Type
- IC Type: U8.
International Standard
- Standard Compliance: ISO/IEC 18000-6C, EPC Global Gen 2v2.
Memory Specifications
- EPC Memory: 128 bits.
- TID Memory: 96 bits.
- User Memory: 0 bits.
- Unique Serial Number: 48 bits encoded into TID.
- Kill Password Memory: 32 bits.
Read Range
- Maximum Read Range: Up to 8 meters.
- Typical Read Range: 2-8 meters.
Physical Specifications
- Material: ABS and Nylon.
- Dimensions: Please refer to the provided drawings for detailed dimensions.
Operating Environment
- Temperature Range: -40°C to +85°C.
Technical Parameters
- Communication Protocol: ISO/IEC 18000-6C, EPC Global Gen 2v2.
- Operating Frequency: UHF 860-960 MHz.
- Read Sensitivity: -23 dBm.
- Write Sensitivity: -18 dBm.
Chip Characteristics
- Chip Manufacturer: Contact Customer Service.
- Chip Family: U8.
- Write Endurance: 100,000 write cycles.
- Data Retention: 20 years.
- Memory Safeguard: Yes.
