Product Overview

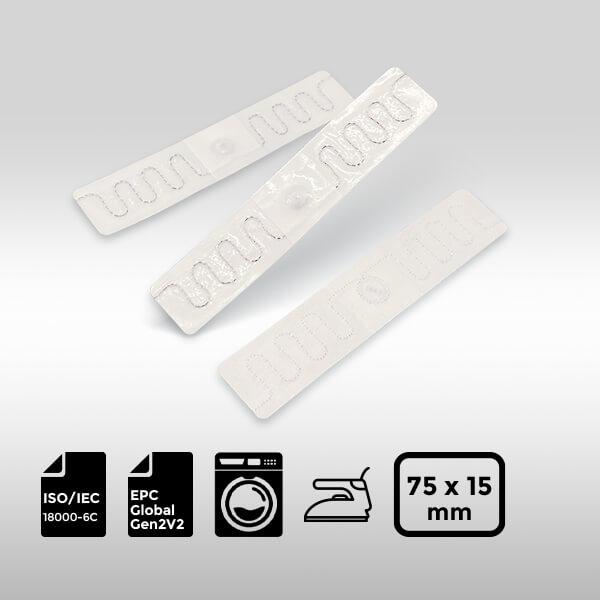

- Product Type: U9 RFID Textile Laundry Tag.
- Durability: Designed to endure and surpass 200 industrial wash cycles, ensuring long-lasting durability.
- Performance Testing: Each tag undergoes 100% memory write testing, providing exceptionally stable performance.
- Applications: Widely used in uniforms management, linen leasing, industrial washing, textile management, and access control management.
Frequency Band
- Operating Frequency:
- EU: 865-868 MHz
- US: 902-928 MHz
Chip Type
- IC Type: U9
International Standard
- Standard Compliance: ISO 18000-6C, EPC Global Gen2v2
Memory Specifications
- TID Memory: 96-bit
- EPC Memory: 96-bit
- Unique Serial Number: 48-bit
- Kill Password: 32-bit
Washing Cycles
- Durability: 200 washing cycles or 2 years (whichever reaches first)
Physical Specifications
- Material: Textile
- Dimensions: 75×15×1.5 mm
- Weight: 0.57g
- Surface Color: White
- Mounting Method: Sewing onto the cloth or heat press
Technical Parameters
- Operating Frequency:
- EU: 865-868 MHz
- US: 902-928 MHz
- Communication Protocol: ISO 18000-6C, EPC Global Gen2v2
- Antenna Polarization Mode: Linear Polarization
- Reading Distance:
- Fixed Reader (2W ERP): Over 10 meters
- Handheld Reader (30dbi power): Over 7 meters
Chip Characteristics
- Chip Manufacturer: Contact Customer Service
- Chip Type: U9
- TID Memory: 96-bit
- EPC Memory: 96-bit
- Read Sensitivity: -24 dBm
- Write Sensitivity: -22 dBm
- Encoding Speed: 32 bits in 0.96 ms
- Self Adjust: Supported
- Memory Safeguard: Supported
- Block Write: 32-bit
- Permalock: One-time lock
- Write Endurance: 100,000 write cycles
- Data Retention Time: 20 years
Operating and Storage Limits
- Operating Limits: -25°C to 110°C, 5% to 95% RH
- Storage Limits: 18°C to 28°C, 40% to 60% RH
Passed Tests
- Compliance: RoHS, MRI, GB18401, 100% Radio frequency compliance testing
Applications
- Uniforms Management
- Linen Leasing
- Industrial Washing
- Textile Management
- Access-Control Management
Packaging
- Packing Format: Packed in carton
- Packing Quantity: 500 pcs/bag, 20 bags/carton
- Gross Weight: 5.38 Kg/carton
- Carton Dimensions: 430×210×270 mm
Washing and Chemical Resistance
- Maximum Washing Temperature: 194°F (90°C) / 15 minutes, 200 times
- Pre-Drying in Tumbler: 356°F (180°C) / 30 minutes, 200 times
- Ironing: 356°F (180°C) / 10 seconds, 200 times
- Sterilization Process: 275°F (135°C) / 20 minutes
- Water Extractor Press: 60 bars
- Chemical Resistance: All standard chemicals used in industrial washing processes.
