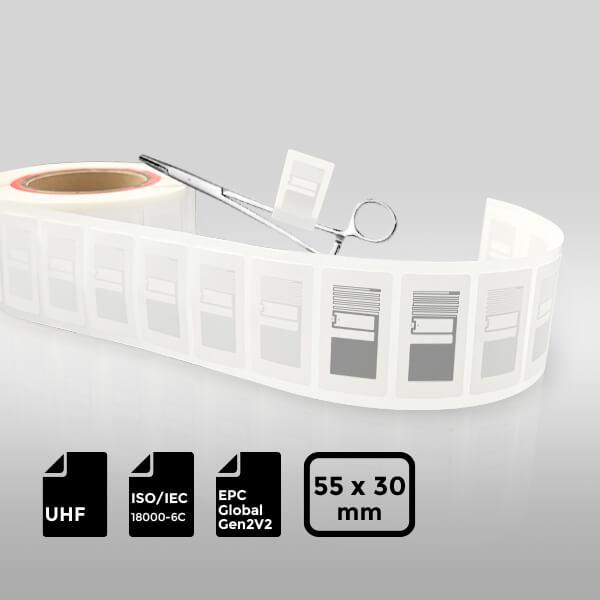

U9 Coated Paper UHF RFID Flag Label for Medical Device Management

Product Overview

• U9 UHF RFID Flag Label for Medical Device Management: A high-performance label designed for the medical industry.
• Features a high-quality coated paper surface, self-adhesive backing, U9 chip, aluminum antenna, double-sided glue, and 80g release paper structure.
• Offers excellent reading distance and reliability, ideal for inventory and asset management in the medical sector to ensure fast and accurate data acquisition.

Features

• Frequency Band: UHF 860-960 MHz
• Chip Type: U9
• International Standard: ISO/IEC 18000-6C, EPC Global Gen2v2
• Certificate: WEEE compliant
• EPC Memory: 96 bits
• Operating Temperature: -20 to 50°C

Specifications

Physical Specifications

• Material: Coated Paper
• Label Size: 55×30 mm
• Inlay Size: 40×20 mm

Technical Parameters

• Operating Frequency: 860-960 MHz
• Communication Protocol: ISO/IEC 18000-6C, EPC Global Gen2v2
• Antenna Programming Mode: Aluminum etching (10µm)
• Operating Mode: Passive
• IC ESD Voltage Immunity: 2000V (HBM)

Additional Information

• Operating Environment:
  • Temperature: -20°C to 50°C
  • Humidity: 20% to 80% RH
• Label Attach Environment:
  • Temperature: 10°C to 40°C
  • Humidity: 20% to 80% RH

Chip Characteristics

• Chip Manufacturer: Contact Customer Service
• Chip Type: U9
• TID Memory: 96 bits (read-only)
• EPC Memory: 96 bits (read & write)
• Read Sensitivity: -24 dBm
• Write Sensitivity: -22 dBm
• Encoding Speed: 32 bits in 0.96 ms
• Self Adjust: Automated tag performance optimization
• Write Endurance: 100,000 times
• Data Retention Time: 20 years
• Memory Safeguard: Supported

Packaging

• Packing Format:
  • Packed in roll (ID = 76.2 mm, OD ≤ 167 mm)
• Packing Quantity: 2000 ± 2 PCS/Roll
• Operating Precautions:
  1. Keep away from water and collision.
  2. DO NOT BEND.
