Product Overview

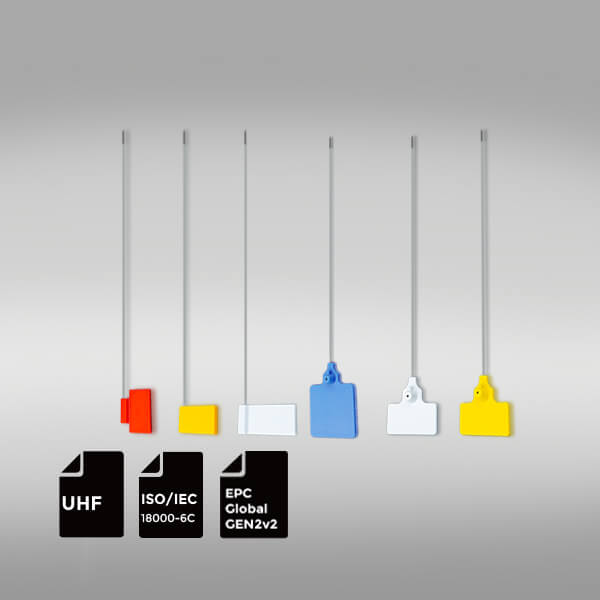

- Product Type: U9 RFID Steel Wire Seal Tag.
- Performance: Excellent performance and stability, designed for stable read/write performance in various harsh environments.
- Applications: Ideal for logistics tracking, inventory management, anti-counterfeiting, and traceability.
- Unique Properties: Combines unique properties of tags and chips to provide unprecedented convenience and efficiency.
Frequency Band
- Operating Frequency: UHF 860-960 MHz.
Chip Type
- IC Type: U9.
International Standard
- Standard Compliance: ISO/IEC 18000-6C, EPC Global Gen2V2.1.
Memory Specifications
- EPC Memory: 96 bits.
- TID Memory: 96 bits.
- Kill Password Memory: 32 bits.
Read Range
- Maximum Read Range: Up to 6 meters.
Physical Specifications
- Material: ABS and Steel Wire.
- Dimensions: Please refer to the provided drawings for detailed dimensions.
Operating Environment
- Temperature Range: -35°C to +85°C.
Applications
- Corporate Asset Management
- Industrial Equipment Tracking
- Retail Merchandise Management
Technical Parameters
- Communication Protocol: ISO/IEC 18000-6C, EPC Global Gen2V2.1.
- Operating Frequency: UHF 860-960 MHz.
- Read Range: Up to 6 meters.
- Communication Rate: 32 bits in 0.96 ms.
Chip Characteristics
- Chip Manufacturer: Contact Customer Service.
- Chip Family: U9.
- Write Endurance: 100,000 write cycles.
- Data Retention: 20 years.
- EPC Memory: 96 bytes.
- TID Memory: 96 bytes.
- Read Sensitivity: -24 dBm.
- Write Sensitivity: -22 dBm.
- Memory Safeguard: Yes.
