RFID Technical Specifications
- Frequency Band: HF 13.56 MHz, a standard frequency for high-frequency RFID and NFC applications.
- Chip Type: NFC TAG 424 DNA, offering advanced security and data protection features.
- International Standards: Compliant with ISO/IEC 14443-A, ISO/IEC 7816-4, and NFC Forum Type 4, ensuring global compatibility.
- User Memory: 416 bytes, providing ample space for data storage.
- UID: 7 bytes, ensuring unique identification for each NFC ring.
- Data Transfer Rates: 106 kbit/s, 212 kbit/s, 424 kbit/s, and 848 kbit/s, supporting fast and efficient data transfer.
Physical Specifications

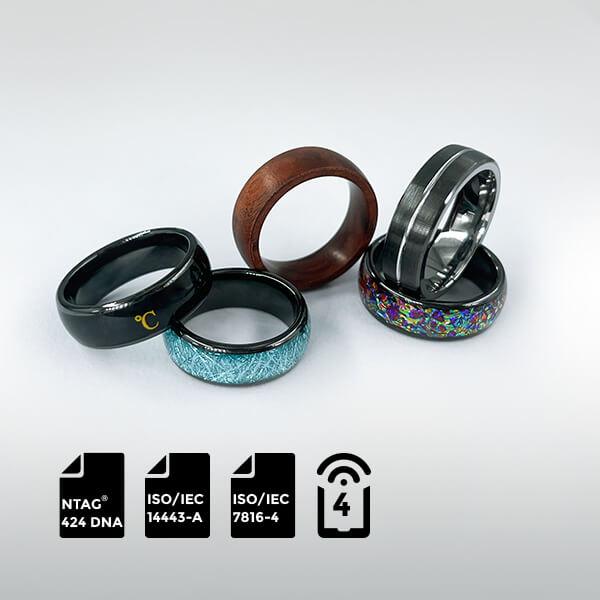

- Materials:
- Wood
- Tungsten Steel + Zirconia Ceramic
- Zirconia Ceramic + Epoxy
- Zirconia Ceramic + Epoxy (Ammonite)
- Zirconia Ceramic + Epoxy (Black Temperature Sensitivity)
- Ring Size (US): Available in sizes No.6 to No.12. For specific size, refer to the guide on “How to choose the NFC ring size?”
Technical Parameters
- Operating Frequency: 13.56 MHz
- Communication Protocol: ISO/IEC 14443-A, ISO/IEC 7816-4, NFC Forum Type 4
- Operating Distance: Up to 10 cm
- Input Capacitance: 50 pF
Chip Characteristics
- Chip Manufacturer: Contact Customer Service Semiconductors
- Data Transfer Rates: 106 kbit/s, 212 kbit/s, 424 kbit/s, and 848 kbit/s
- User Memory: 416 bytes
- UID: 7 bytes
- Authentication: Standard AES-128 cryptography
- Advanced Data Protection: SUN message authentication
- Common Criteria Certification: EAL4 for both hardware and software
- Originality Signature: ECC-based
- Anti-collision: Yes, allowing multiple tags to be read simultaneously
- Write Endurance: 200,000 cycles
- Data Retention: 50 years
Additional Information
- Storage Environment: 15°C to 25°C, 40% to 60% RH
- Operating Environment: 0°C to 40°C, 30% to 80% RH
- Applications: Suitable for a wide range of applications including public transportation and tickets, access control, electronic payment, electronic business cards, smart home automation, mobile app launch, and more.
