RFID Technical Specifications
- Frequency Band: HF 13.56 MHz, a standard frequency for high-frequency RFID and NFC applications.
- Chip Type: NFC TAG 216, offering robust performance and security features.
- International Standards: Compliant with ISO/IEC 14443-A and NFC Forum Type 2, ensuring global compatibility.
- EEPROM: 924 bytes, providing ample space for data storage.
- User Read/Write Area: 888 bytes, offering extensive user-configurable memory.
- Unique Serial Number: 7-byte UID, ensuring unique identification for each NFC ring.
Physical Specifications

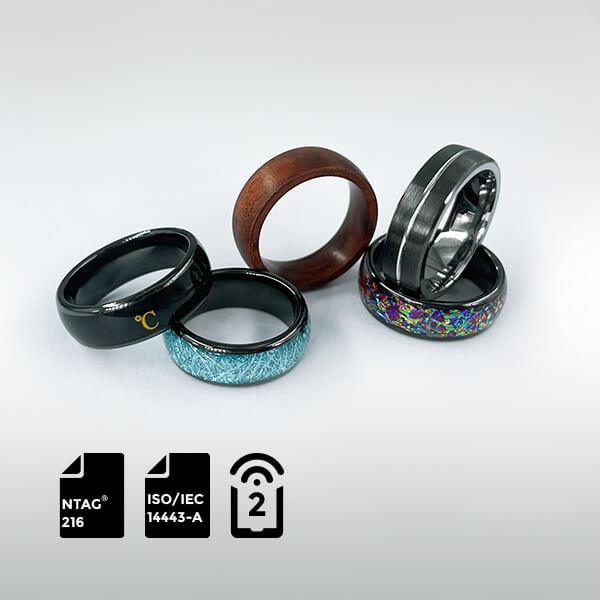

- Materials:
- Wood
- Tungsten Steel + Zirconia Ceramic
- Zirconia Ceramic + Epoxy
- Zirconia Ceramic + Epoxy (Ammonite)
- Zirconia Ceramic + Epoxy (Black Temperature Sensitivity)
- Ring Size (US): Available in sizes No.6 to No.12. For specific size, refer to the guide on “How to choose the NFC ring size?”
Technical Parameters
- Operating Frequency: 13.56 MHz
- Communication Protocol: ISO/IEC 14443-A, NFC Forum Type 2
- Communication Rate: 106 kbit/s
- Operating Distance: Up to 10 cm
- Input Capacitance: 50 pF
Chip Characteristics
- Chip Manufacturer: Contact Customer Service Semiconductors
- EEPROM: 924 bytes
- Unique Serial Number: 7-byte UID
- Initialized Capability Container: 4 bytes
- User Read/Write Area: 888 bytes
- Memory Access Protection: 32-bit password
- Originality Signature: ECC-based
- Write Endurance: 100,000 cycles
- Data Retention: 10 years
- Memory Organization: 924 bytes organized in 231 pages with 4 bytes per page
- Anti-collision: Supported, allowing multiple tags to be read simultaneously
Additional Information
- Storage Environment: 15°C to 25°C, 40% to 60% RH
- Operating Environment: 0°C to 40°C, 30% to 80% RH
- Applications: Suitable for a wide range of applications including public transportation and tickets, access control, electronic payment, electronic business cards, smart home automation, mobile app launch, and more.
