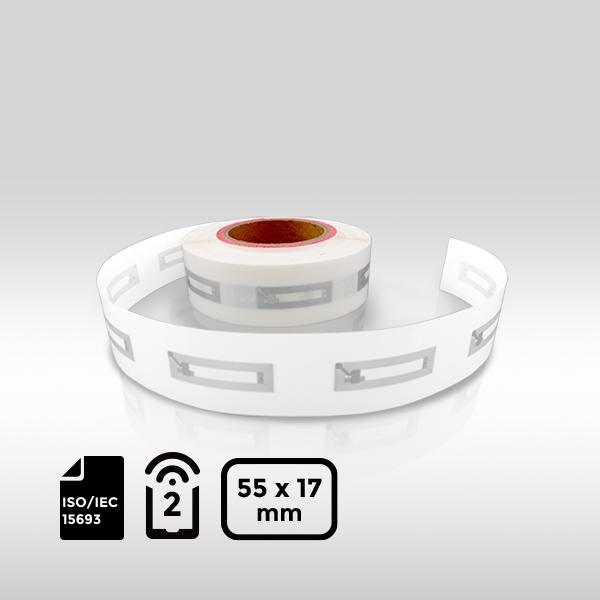

RFID 213 PET NFC Wet Inlay 55×17mm

Product Overview

• A high-performance, general-purpose NFC tag solution designed for multi-scenario applications.
• Features the NFC TAG 213 chip with excellent read sensitivity and fast, reliable data exchange.
• Suitable for smart packaging, product authentication, ticketing, and interactive marketing.
• Provides 144 bytes of user-available storage space.
• Enhanced security with password-based access control and anti-counterfeiting features.
• Wet inlay format (with adhesive) for quick and easy attachment to various surfaces.
• Fully compliant with ISO/IEC 14443-A and NFC Forum Type 2 standards.
• Compatible with all NFC-enabled smart devices for instant interaction.

Features

• Frequency Band: HF 13.56 MHz
• Chip Type: NFC TAG 213
• International Standard: ISO/IEC 14443-A, NFC Forum Type 2
• User Memory: 144 bytes
• TID Memory: 7 bytes
• Read Range: Up to 10 cm

Specifications

Physical Specifications

• Material: PET
• Size: 55×17 mm
• Antenna Size: 55×15 mm

Technical Parameters

• Operating Frequency: HF 13.56 MHz
• Communication Protocol: ISO/IEC 14443-A, NFC Forum Type 2
• Capacitance: 50 pF
• Operating Mode: Passive
• Read Range: Up to 10 cm

Chip Characteristics

• Chip Manufacturer: Contact Customer Service
• Chip Type: NFC TAG 213
• Data Retention: 10 years
• User Memory: 144 bytes
• UID Memory: 7 bytes
• Write Endurance: 100,000 cycles
• Reading Rate: 106 kbit/s
• High Data Integrity: 16-bit CRC
• Password: 32-bit
• Anti-Collision Function: Yes
• ESD Voltage Immunity: Max 2000V

Additional Information

• Operating Environment:
  • Label Attach: 10°C~40°C, 20%~80% RH
  • After Label Attached: -20°C~50°C, 20%~80% RH
• Storage Environment:
  • Temperature: 18°C~28°C
  • Humidity: 40%~60% RH
• Handling Precautions:
  1. Do not bend.
  2. Keep away from water and collision.
  3. Inlays with black-dot marks are defective; do not use.

Packaging

• Packing Format: Packed in roll, vacuumed packing in ESD bag
• Roll OD: Max. 155 mm
• Core ID: 3 inches (76.2 ± 0.50 mm)
• Packing Quantity: 1000 pcs/roll (0.457 kg/roll)
