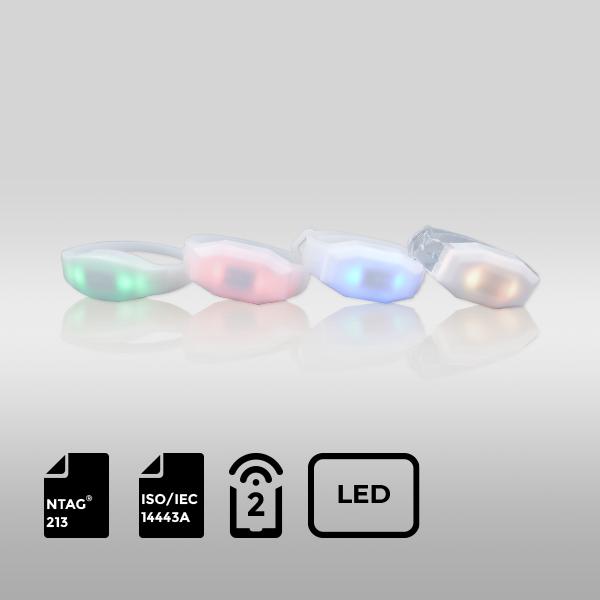

Key Features and Specifications of the NFC TAG 213 NFC Wristband
RFID Technical Specifications
- Frequency Band: HF 13.56 MHz, the standard frequency for high-frequency RFID and NFC applications.
- Chip Type: NFC TAG 213, offering reliable performance and security features.
- International Standards: Compliant with ISO/IEC 14443-A and NFC Forum Type 2, ensuring global compatibility.
- EEPROM: 180 bytes, providing ample space for data storage.
- User Read/Write Area: 144 bytes, offering user-configurable memory.
- Unique Serial Number: 7-byte UID, ensuring unique identification for each wristband.
Physical Specifications
- Material: ABS Shell + Silicone/TPU Band
- Model: FLW-01 to FLW-04
- Size:
- Wristband length: 16 cm
- ABS shell: 3×5.5 cm
- Wristband Type: Available in Non-adjustable and Adjustable options.
- Weight: 30 g per piece.
- Wristband Color: White with a transparent band and white shell.
- LED Light Duration: 10 hours of continuous light.
- LED Light Colors: 15 colors available.
- Lighting Mode: Constant light + 17 flashing modes.
- Battery: 2×CR2032 button batteries.
- Customization: Logo printing available.
Technical Parameters
- Operating Frequency: 13.56 MHz
- Communication Protocol: ISO/IEC 14443-A, NFC Forum Type 2
- Communication Rate: 106 kbit/s
- Operating Distance: Up to 10 cm
- Input Capacitance: 50 pF
Chip Characteristics
- Chip Manufacturer: Contact Customer Service Semiconductors
- EEPROM: 180 bytes
- Unique Serial Number: 7-byte UID
- Initialized Capability Container: 4 bytes
- User Read/Write Area: 144 bytes
- Memory Access Protection: 32-bit password
- Originality Signature: ECC-based
- Write Endurance: 100,000 cycles
- Data Retention: 10 years
- Memory Organization: 180 bytes organized in 45 pages with 4 bytes per page
- Anti-collision: Supported, allowing multiple tags to be read simultaneously
Packaging
- Packing Format: Packed in Box
- Packing Quantity: 200 pcs/box, 400 pcs/carton
- Carton Dimension: 49×29×29 cm, G.W.: 14Kg
